three casters with grey tread black core wheel in rigid, swivel and swivel with brake configurations.

CD2 series heavy-duty casters with ESD TPR wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
CD2100TPRSwivelTop Plate1005014236.5115x10085x7313x20150
CD2125TPRSwivelTop Plate1255016542115x10085x7313x20200
CD2150TPRSwivelTop Plate1505019151115x10085x7313x20250
CD2200TPRSwivelTop Plate2005024063115x10085x7313x20350
CD2100TPRFRigidTop Plate100501420115x10085x7313x20150
CD2125TPRFRigidTop Plate125501650115x10085x7313x20200
CD2150TPRFRigidTop Plate150501910115x10085x7313x20250
CD2200TPRFRigidTop Plate200502400115x10085x7313x20350
CD2100TPRBSwivel with Total BrakeTop Plate1005014236.5115x10085x7313x20150
CD2125TPRBSwivel with Total BrakeTop Plate1255016542115x10085x7313x20200
CD2150TPRBSwivel with Total BrakeTop Plate1505019151115x10085x7313x20250
CD2200TPRBSwivel with Total BrakeTop Plate2005024063115x10085x7313x20350

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialTPR
Wheel Core MaterialPlastic
Bearing TypeDouble Ball Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness80 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceResin / Epoxy, Tile, Vinyl / PVC
Suitable Floor ConditionsSmooth, Slightly Uneven, Uneven

Special Properties

Antistatic✓
Conductive✓
Non-Marking✓
Non-Staining×

Related Products

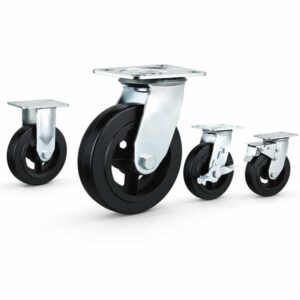

Four heavy-duty caster wheels in top plate mounting style, with blue tread black core wheel and silver color metal bracket.H1 series heavy-duty elastic rubber caster wheelsOverlapping load range: 150 - 350 kgView product →Four heavy-duty caster wheels in top plate mounting style, with black tread black core wheel and silver color metal bracket.H1 series heavy-duty casters with rubber tread cast iron core wheelOverlapping load range: 150 - 350 kgView product →Four heavy-duty caster wheels in top plate mounting style, with grey wheel and silver color metal bracket.H1 series heavy-duty TPR caster wheelsOverlapping load range: 160 - 300 kgView product →heavy-duty stainless steel caster with TPR wheelSS4 series heavy-duty stainless steel casters with TPR wheelOverlapping load range: 200 - 350 kgView product →
