Four heavy-duty caster wheels in top plate mounting style, with black tread black core wheel and silver color metal bracket.

H1 series heavy-duty casters with rubber tread cast iron core wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
H1100BRISwivelTop Plate1005014336.5115x10084x7011x20150
H1125BRISwivelTop Plate1255016542115x10084x7011x20250
H1150BRISwivelTop Plate1505019051115x10084x7011x20280
H1200BRISwivelTop Plate2005024163115x10084x7011x20350
H1100BRIFRigidTop Plate100501430115x10084x7011x20150
H1125BRIFRigidTop Plate125501650115x10084x7011x20250
H1150BRIFRigidTop Plate150501900115x10084x7011x20280
H1200BRIFRigidTop Plate200502410115x10084x7011x20350
H1100BRISBSwivel with Side-Mounted Wheel BrakeTop Plate1005014336.5115x10084x7011x20150
H1125BRISBSwivel with Side-Mounted Wheel BrakeTop Plate1255016542115x10084x7011x20250
H1150BRISBSwivel with Side-Mounted Wheel BrakeTop Plate1505019051115x10084x7011x20280
H1200BRISBSwivel with Side-Mounted Wheel BrakeTop Plate2005024163115x10084x7011x20350
H1100BRITBSwivel with Total BrakeTop Plate1005014336.5115x10084x7011x20150
H1125BRITBSwivel with Total BrakeTop Plate1255016542115x10084x7011x20250
H1150BRITBSwivel with Total BrakeTop Plate1505019051115x10084x7011x20280
H1200BRITBSwivel with Total BrakeTop Plate2005024163115x10084x7011x20350

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialBlack rubber
Wheel Core MaterialCast iron
Bearing TypeRoller Bearing
Bracket MaterialSteel
Bracket ConstructionWelded
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness80 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC
Suitable Floor ConditionsSmooth, Slightly Uneven, Uneven, With Obstacles

Special Properties

Non-Marking✓
Non-Staining✓

Related Products

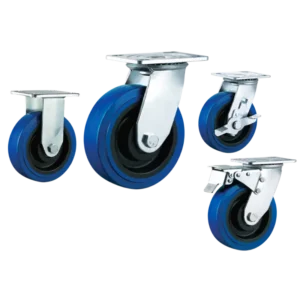

Four heavy-duty caster wheels in top plate mounting style, with blue tread black core wheel and silver color metal bracket.H1 series heavy-duty elastic rubber caster wheelsOverlapping load range: 150 - 350 kgView product →three casters with grey tread black core wheel in rigid, swivel and swivel with brake configurations.CD2 series heavy-duty casters with ESD TPR wheelOverlapping load range: 150 - 350 kgView product →Four heavy-duty caster wheels in top plate mounting style, with grey wheel and silver color metal bracket.H1 series heavy-duty TPR caster wheelsOverlapping load range: 160 - 300 kgView product →heavy-duty stainless steel caster with TPR wheelSS4 series heavy-duty stainless steel casters with TPR wheelOverlapping load range: 200 - 350 kgView product →
