four casters with silver rim black tread in top-plate rigid, swivel and swivel with brake configurations

GC1 series EN840 industrial waste bin casters with steel rim rubber wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
GC1160-1SwivelTop Plate1605014628115x10084x7011x20250
GC1200-1SwivelTop Plate2005017030.5115x10084x7011x20350
GC1160B1Swivel with Total BrakeTop Plate1605014628115x10084x7011x20250
GC1200B1Swivel with Total BrakeTop Plate2005017030.5115x10084x7011x20350
GC1160-2SwivelTop Plate1605014628115x10084x7011x20250
GC1200-2SwivelTop Plate2005017030.5115x10084x7011x20350
GC1160B2Swivel with Rare Total BrakeTop Plate1605014628115x10084x7011x20250
GC1200B2Swivel with Rare Total BrakeTop Plate2005017030.5115x10084x7011x20350

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialBlack rubber
Wheel Core MaterialSteel rim
Bearing TypeRoller Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness75 ± 5 Shore A

Performance & Environment

Temperature Resistance-10°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceConcrete, Resin / Epoxy, Vinyl / PVC
Suitable Floor ConditionsSmooth, Slightly Uneven, Uneven

Special Properties

Non-Marking×
Non-Staining✓

Related Products

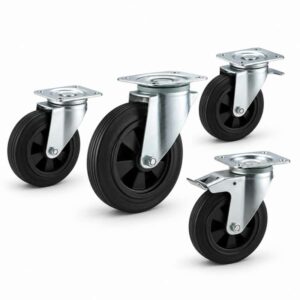

four casters with black rim black tread in top-plate rigid, swivel and swivel with brake configurationsGC2 series EN840 commercial waste container casters with plastic rim rubber wheelOverlapping load range: 250 - 350 kgView product →four casters with white wheels in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracketH4EU series euro-style heavy-duty nylon caster wheelsOverlapping load range: 250 - 350 kgView product →four casters with blue tread black core wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.H4EU series euro-style heavy-duty elastic rubber caster wheelsOverlapping load range: 250 - 350 kgView product →four casters with red tread silver core wheels in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.H4EU series euro-style heavy-duty PU tread cast iron core caster wheelsOverlapping load range: 250 - 350 kgView product →
