three casters with black tread silver core wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.

CD5EU euro-style heavy-duty casters with conductive PU tread aluminum core wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
CD5EU100UASwivelTop Plate1005016739.5135x110105x8011400
CD5EU125UASwivelTop Plate1255018548135x110105x8011500
CD5EU150UASwivelTop Plate1505021350.5135x110105x8011600
CD5EU200UASwivelTop Plate2005025156.5135x110105x8011700
CD5EU100UAFRigidTop Plate100501670135x110105x8011400
CD5EU125UAFRigidTop Plate125501850135x110105x8011500
CD5EU150UAFRigidTop Plate150502130135x110105x8011600
CD5EU200UAFRigidTop Plate200502510135x110105x8011700
CD5EU100UABSwivel with Total BrakeTop Plate1005016739.5135x110105x8011400
CD5EU125UABSwivel with Total BrakeTop Plate1255018548135x110105x8011500
CD5EU150UABSwivel with Total BrakeTop Plate1505021350.5135x110105x8011600
CD5EU200UABSwivel with Total BrakeTop Plate2005025156.5135x110105x8011700

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialPU
Wheel Core MaterialAluminum
Bearing TypeDouble Ball Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness95 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceResin / Epoxy, Tile, Vinyl / PVC, Carpet
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Antistatic×
Conductive✓
Non-Marking✓
Non-Staining✓
Tread Hydrolysis-Resistant✓

Related Products

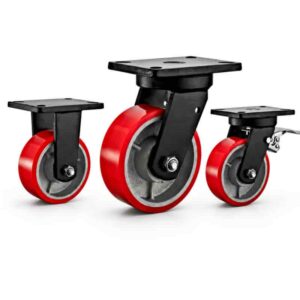

three heavy-duty caster wheels in top plate mounting style, with red tread silver core wheel and black color metal bracket.H2 series heavy-duty casters with PU tread cast iron core wheelOverlapping load range: 400 - 700 kgView product →three casters with brown tread silver core wheel in top-plate rigid, swivel and swivel with brake configurations and golden color metal bracket.H6EU series heavy-duty casters with PU tread aluminum core wheelsOverlapping load range: 400 - 700 kgView product →three casters with black tread silver core wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.H5EU series euro-style heavy-duty casters with elastic rubber tread aluminum core wheelsOverlapping load range: 400 - 650 kgView product →three casters with white wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.H5EU series heavy-duty nylon caster wheelsOverlapping load range: 500 - 700 kgView product →
