View all Extra heavy-duty wheels casters
| Product Code | Wheel Ø (mm) | Wheel Width (mm) | Bearing Type | Original Bore Ø (mm) | Hub Length (mm) | Load Capacity (kg) | |||
|---|---|---|---|---|---|---|---|---|---|
| 4 km/h | 6 km/h | 10 km/h | Static | ||||||
| EX7125PUIWH | 125 | 50 | Double Ball Bearing | 20 | 60 | 450 | 310 | 180 | 1125 |
| EX7150PUIWH | 150 | 50 | Double Ball Bearing | 25 | 60 | 570 | 380 | 200 | 1425 |
| EX7200PUIWH | 200 | 80 | Double Ball Bearing | 35 | 90 | 1200 | 840 | 480 | 3000 |
| EX7250PUIWH | 250 | 80 | Double Ball Bearing | 35 | 90 | 1400 | 900 | 560 | 3500 |
| EX7300PUIWH | 300 | 100 | Double Ball Bearing | 45 | 110 | 2250 | 1250 | 840 | 5625 |
| EX7360PUIWH | 360 | 150 | Double Ball Bearing | 60 | 160 | 3000 | 1750 | 1100 | 8000 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | PU |
| Wheel Core Material | Cast iron |
| Bearing Type | Double Ball Bearing |
| Wheel Tread Hardness | 75 ± 3 Shore A |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven, Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
| Tread Hydrolysis-Resistant | ✓ |

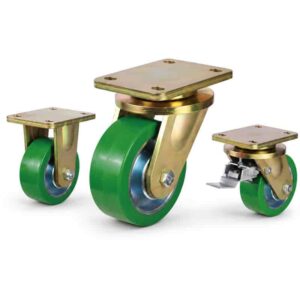

EX7 series extra heavy-duty casters with PU tread cast iron core wheelOverlapping load range: 450 - 2,250 kgView product →

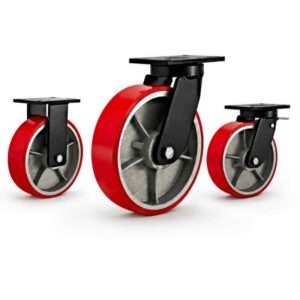

EX3 series extra heavy-duty casters with PU tread cast iron core wheelOverlapping load range: 1,200 - 2,000 kgView product →

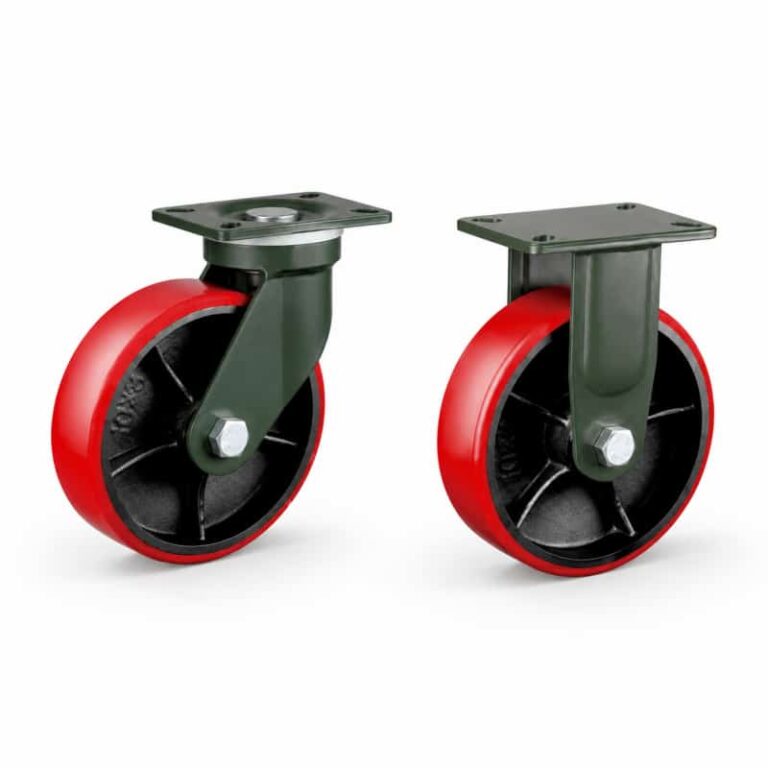

EX4 series extra heavy-duty casters with PU tread cast iron core wheelOverlapping load range: 1,200 - 2,500 kgView product →

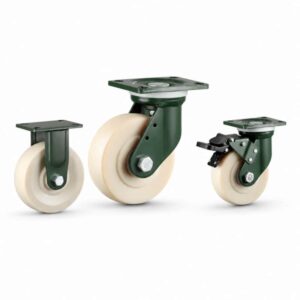

EX1 series extra heavy-duty casters with MC nylon wheelOverlapping load range: 1,100 - 1,600 kgView product →
