View all Extra heavy-duty wheels casters
| Product Code | Wheel Ø (mm) | Wheel Width (mm) | Bearing Type | Original Bore Ø (mm) | Hub Length (mm) | Load Capacity (kg) | |||
|---|---|---|---|---|---|---|---|---|---|
| 4 km/h | 6 km/h | 10 km/h | Static | ||||||
| EX8100PUIWH | 100 | 40 | Double Ball Bearing | 20 | 40 | 450 | 1125 | ||
| EX8125PUIWH | 125 | 50 | Double Ball Bearing | 20 | 60 | 700 | 350 | 1375 | |
| EX8150PUIWH | 150 | 50 | Double Ball Bearing | 25 | 60 | 800 | 640 | 560 | 2000 |
| EX8200PUIWH | 200 | 80 | Double Ball Bearing | 35 | 90 | 1600 | 1280 | 1100 | 4000 |
| EX8250PUIWH | 250 | 80 | Double Ball Bearing | 35 | 90 | 2200 | 1760 | 1550 | 5500 |
| EX8300PUIWH | 300 | 100 | Double Ball Bearing | 45 | 110 | 3000 | 2400 | 2100 | 7500 |
| EX8360PUIWH | 360 | 150 | Double Ball Bearing | 60 | 160 | 3800 | 3040 | 2650 | 9500 |
| EX8500PUIWH | 500 | 150 | Double Ball Bearing | 60 | 160 | 7500 | 6000 | 5250 | 18750 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | PU |
| Wheel Core Material | Cast iron |
| Bearing Type | Double Ball Bearing |
| Wheel Tread Hardness | 92 ± 3 Shore A |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Vinyl / PVC, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven, Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
| Tread Hydrolysis-Resistant | ✓ |

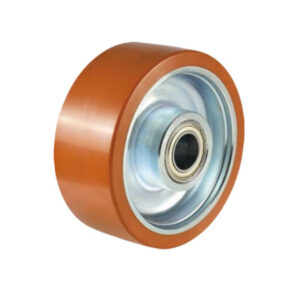

EX9-WH series individual extra heavy-duty PU tread cast iron core wheelOverlapping load range: 350 - 7,500 kgView product →

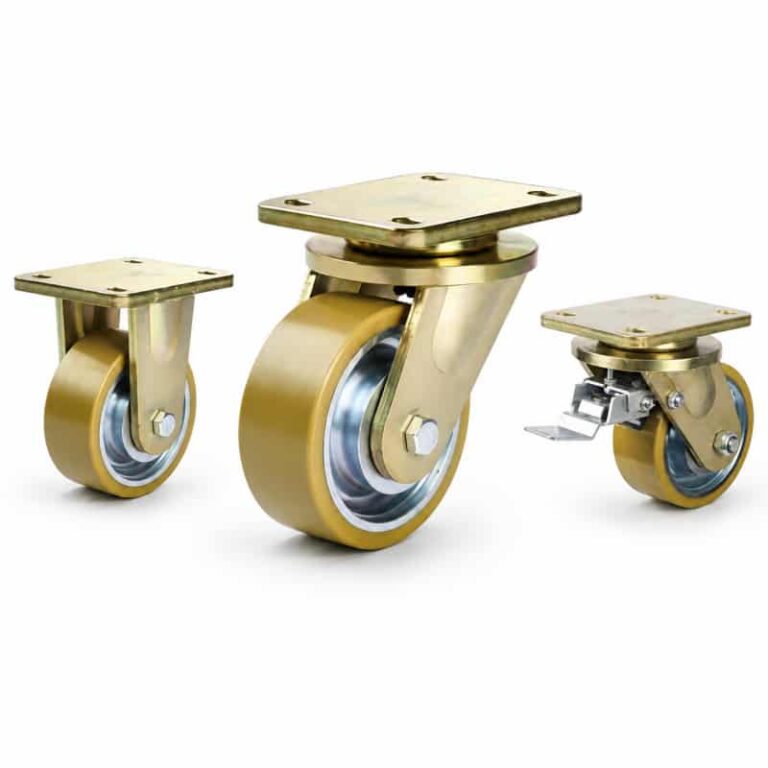

EX8 series extra heavy-duty PU tread cast iron core castersOverlapping load range: 700 - 7,500 kgView product →

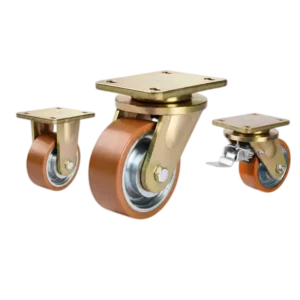

EX9 series extra heavy-duty casters with PU tread cast iron core wheelOverlapping load range: 700 - 7,500 kgView product →

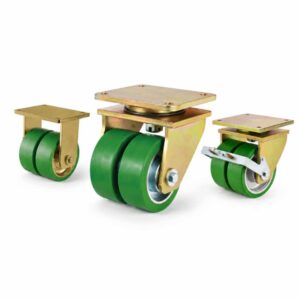

EX7D series extra heavy-duty dual wheel PU tread cast iron core castersOverlapping load range: 900 - 6,000 kgView product →EX9-WH series individual extra heavy-duty PU tread cast iron core wheelShared wheel sizes: 100, 125, 150, 200, 250, 300, 360, 500 mmView product →

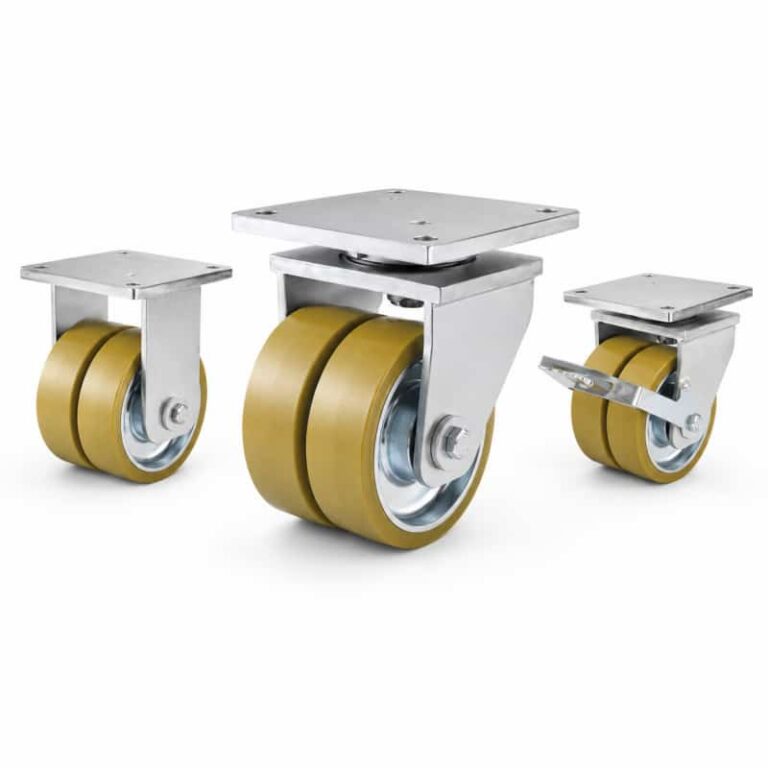

EX8D series extra heavy-duty casters with dual PU tread cast iron core wheelsShared wheel sizes: 100, 125, 150, 200, 250, 300, 360, 500 mmView product →
EX9D series extra heavy-duty dual casters with dual PU tread cast iron core wheelsShared wheel sizes: 100, 125, 150, 200, 250, 300, 360, 500 mmView product →

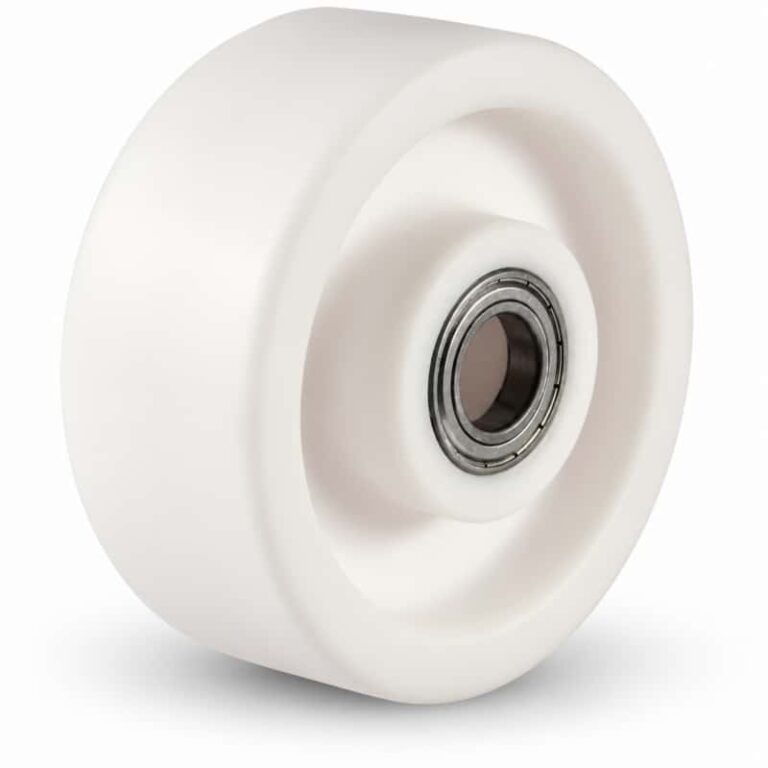

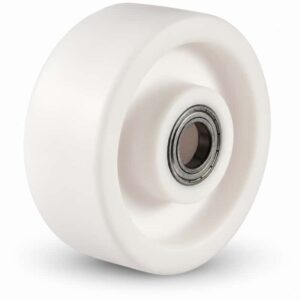

EX10-WH series individual extra heavy-duty MC nylon wheelShared wheel sizes: 100, 125, 150, 200, 250, 300, 360, 500 mmView product →Need help selecting the right model?
