heavy-duty stainless steel caster with nylon wheel

SS4 series heavy-duty stainless steel casters with nylon wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
SS4100PASwivelTop Plate1005014628115x10084x7011x20250
SS4125PASwivelTop Plate1255017030.5115x10084x7011x20350
SS4150PASwivelTop Plate1505019540115x10084x7011x20450
SS4200PASwivelTop Plate2005024553115x10084x7011x20550
SS4100PAFRigidTop Plate100501460115x10084x7011x20250
SS4125PAFRigidTop Plate125501700115x10084x7011x20350
SS4150PAFRigidTop Plate150501950115x10084x7011x20450
SS4200PAFRigidTop Plate200502450115x10084x7011x20550
SS4100PABSwivel with Total BrakeTop Plate1005014628115x10084x7011x20250
SS4125PABSwivel with Total BrakeTop Plate1255017030.5115x10084x7011x20350
SS4150PABSwivel with Total BrakeTop Plate1505019540115x10084x7011x20450
SS4200PABSwivel with Total BrakeTop Plate2005024553115x10084x7011x20550

Wheel & Bracket

Wheel ConstructionOne-Piece
Wheel MaterialPolyamide 6
Bearing TypeDouble Ball Bearing
Bracket MaterialStainless Steel
Bracket ConstructionWelded
Salt Spray Test Duration100 h
Wheel Tread Hardness65 ± 3 Shore D

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceLow
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet, Natural Stone, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Non-Marking✓
Non-Staining✓

Related Products

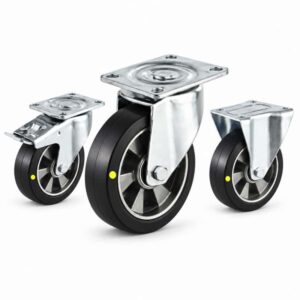

heavy-duty stainless steel caster with stainless steel wheelSS4 series heavy-duty stainless steel casters with stainless steel wheelOverlapping load range: 250 - 550 kgView product →three casters with black tread silver core wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.CD4EU euro-style heavy-duty casters with conductive PU tread aluminum core wheelOverlapping load range: 250 - 520 kgView product →Four heavy-duty caster wheels in top plate mounting style, with cream white color wheel and silver color metal bracket.H1 series heavy-duty plastic caster wheelsOverlapping load range: 260 - 460 kgView product →Four heavy-duty caster wheels in top plate mounting style, with white wheel and silver color metal bracket.H1 series heavy-duty nylon caster wheelsOverlapping load range: 260 - 460 kgView product →
