View all SS3 Euro-style series | 100-200 kg capacity casters
| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|
| SS3080PASwivel | Top Plate | 80 | 36 | 108 | 36 | 105x85 | 80x60 | 9x14 | 150 |
| SS3100PASwivel | Top Plate | 100 | 36 | 128 | 35 | 105x85 | 80x60 | 9x14 | 150 |
| SS312536PASwivel | Top Plate | 125 | 36 | 155 | 38 | 105x85 | 80x60 | 11x15 | 200 |
| SS312540PASwivel | Top Plate | 125 | 40 | 155 | 38 | 105x85 | 80x60 | 11x15 | 200 |
| SS3080PAFRigid | Top Plate | 80 | 36 | 108 | 0 | 105x85 | 80x60 | 9x14 | 150 |
| SS3100PAFRigid | Top Plate | 100 | 36 | 128 | 0 | 105x85 | 80x60 | 9x14 | 150 |
| SS312536PAFRigid | Top Plate | 125 | 36 | 155 | 0 | 105x85 | 80x60 | 11x15 | 200 |
| SS312540PAFRigid | Top Plate | 125 | 40 | 155 | 0 | 105x85 | 80x60 | 11x15 | 200 |
| SS3080PABSwivel with Total Brake | Top Plate | 80 | 36 | 108 | 36 | 105x85 | 80x60 | 9x14 | 150 |
| SS3100PABSwivel with Total Brake | Top Plate | 100 | 36 | 128 | 35 | 105x85 | 80x60 | 9x14 | 150 |
| SS312536PABSwivel with Total Brake | Top Plate | 125 | 36 | 155 | 38 | 105x85 | 80x60 | 11x15 | 200 |
| SS312540PABSwivel with Total Brake | Top Plate | 125 | 40 | 155 | 38 | 105x85 | 80x60 | 11x15 | 200 |
| Wheel Construction | One-Piece |
|---|---|
| Wheel Material | Polyamide 6 |
| Bearing Type | Ball Bearing, Double Ball Bearing |
| Bracket Material | Stainless Steel |
| Bracket Construction | Pressed |
| Salt Spray Test Duration | 100 h |
| Wheel Tread Hardness | 65 ± 3 Shore D |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet, Natural Stone, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
SS3 series Euro-style stainless steel casters with PU tread nylon core wheelOverlapping load range: 150 - 190 kgView product →

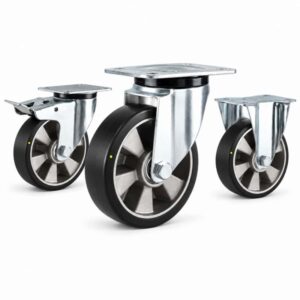

CD3EU euro-style medium-duty casters with conductive PU tread aluminum core wheelOverlapping load range: 150 - 200 kgView product →

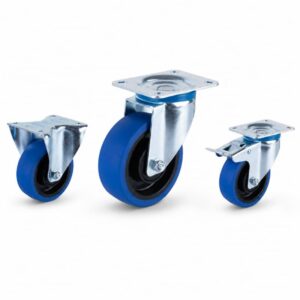

M2EU series euro-style medium-duty elastic rubber castersOverlapping load range: 150 - 200 kgView product →

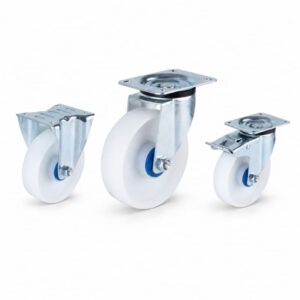

M2EU series euro -style medium-duty plastic caster wheelsOverlapping load range: 150 - 200 kgView product →SS3 series Euro-style stainless steel casters with PU tread nylon core wheelShared wheel sizes: 80, 100, 125 mmView product →
SS3 series euro-style stainless steel casters with elastic rubber wheelShared wheel sizes: 80, 100, 125 mmView product →

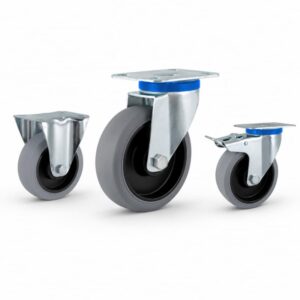

M2EU series euro-style medium-duty TPR caster wheelsShared wheel sizes: 80, 100, 125 mmView product →
