three casters with black tread silver core wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.

CD3EU euro-style medium-duty casters with conductive PU tread aluminum core wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
CD3EU100UASwivelTop Plate1003212838105x8080x6011x9150
CD3EU125UASwivelTop Plate1254015538105x8080x6011x9180
CD3EU150UASwivelTop Plate1505019052135x110105x8013.5x11250
CD3EU200UASwivelTop Plate2005023554135x110105x8013.5x11300
CD3EU100UAFRigidTop Plate100321280105x8080x6011x9150
CD3EU125UAFRigidTop Plate125401550105x8080x6011x9180
CD3EU150UAFRigidTop Plate150501900135x110105x8013.5x11250
CD3EU200UAFRigidTop Plate200502350135x110105x8013.5x11300
CD3EU100UABSwivel with Total BrakeTop Plate1003212838105x8080x6011x9150
CD3EU125UABSwivel with Total BrakeTop Plate1254015538105x8080x6011x9180
CD3EU150UABSwivel with Total BrakeTop Plate1505019052135x110105x8013.5x11250
CD3EU200UABSwivel with Total BrakeTop Plate2005023554135x110105x8013.5x11300

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialPU
Wheel Core MaterialAluminum
Bearing TypeDouble Ball Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness95 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceLow
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Antistatic×
Conductive✓
Non-Marking✓
Non-Staining✓
Tread Hydrolysis-Resistant✓

Related Products

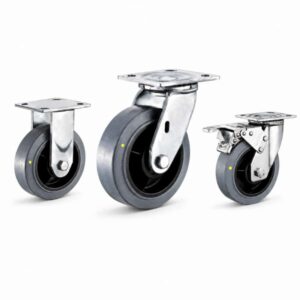

Four heavy-duty caster wheels in top plate mounting style, with grey wheel and silver color metal bracket.H1 series heavy-duty TPR caster wheelsOverlapping load range: 160 - 300 kgView product →Four heavy-duty caster wheels in top plate mounting style, with blue tread black core wheel and silver color metal bracket.H1 series heavy-duty elastic rubber caster wheelsOverlapping load range: 150 - 300 kgView product →Four heavy-duty caster wheels in top plate mounting style, with black tread black core wheel and silver color metal bracket.H1 series heavy-duty casters with rubber tread cast iron core wheelOverlapping load range: 150 - 300 kgView product →three casters with grey tread black core wheel in rigid, swivel and swivel with brake configurations.CD2 series heavy-duty casters with ESD TPR wheelOverlapping load range: 150 - 300 kgView product →
