| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|
| CD4EU100UASwivel | Top Plate | 100 | 40 | 128 | 43 | 105x82 | 80x60 | 9 | 250 |
| CD4EU125UASwivel | Top Plate | 125 | 40 | 153 | 43 | 105x82 | 80x60 | 9 | 320 |
| CD4EU150UASwivel | Top Plate | 150 | 50 | 187 | 68 | 135x105 | 105x80 | 11 | 400 |
| CD4EU200UASwivel | Top Plate | 200 | 50 | 240 | 68 | 135x105 | 105x80 | 11 | 520 |
| CD4EU100UAFRigid | Top Plate | 100 | 40 | 128 | 0 | 105x82 | 80x60 | 9 | 250 |
| CD4EU125UAFRigid | Top Plate | 125 | 40 | 153 | 0 | 105x82 | 80x60 | 9 | 320 |
| CD4EU150UAFRigid | Top Plate | 150 | 50 | 187 | 0 | 135x105 | 105x80 | 11 | 400 |
| CD4EU200UAFRigid | Top Plate | 200 | 50 | 240 | 0 | 135x105 | 105x80 | 11 | 520 |
| CD4EU100UABSwivel with Total Brake | Top Plate | 100 | 40 | 128 | 43 | 105x82 | 80x60 | 9 | 250 |
| CD4EU125UABSwivel with Total Brake | Top Plate | 125 | 40 | 153 | 43 | 105x82 | 80x60 | 9 | 320 |
| CD4EU150UABSwivel with Total Brake | Top Plate | 150 | 50 | 187 | 68 | 135x105 | 105x80 | 11 | 400 |
| CD4EU200UABSwivel with Total Brake | Top Plate | 200 | 50 | 240 | 68 | 135x105 | 105x80 | 11 | 520 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | PU |
| Wheel Core Material | Aluminum |
| Bearing Type | Double Ball Bearing |
| Bracket Material | Steel |
| Bracket Construction | Pressed |
| Surface Treatment | White Zinc Plated |
| Salt Spray Test Duration | 48 h |
| Wheel Tread Hardness | 95 ± 5 Shore A |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Medium |
| Suitable Floor Surface | Resin / Epoxy, Tile, Vinyl / PVC, Carpet |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Antistatic | × |
|---|---|
| Conductive | ✓ |
| Non-Marking | ✓ |
| Non-Staining | ✓ |
| Tread Hydrolysis-Resistant | ✓ |
SS4 series heavy-duty stainless steel casters with nylon wheelOverlapping load range: 250 - 520 kgView product →
SS4 series heavy-duty stainless steel casters with stainless steel wheelOverlapping load range: 250 - 520 kgView product →

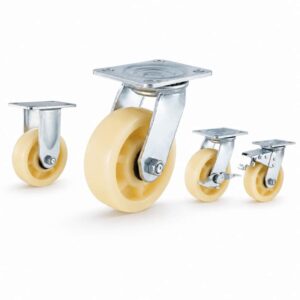

H1 series heavy-duty plastic caster wheelsOverlapping load range: 260 - 460 kgView product →

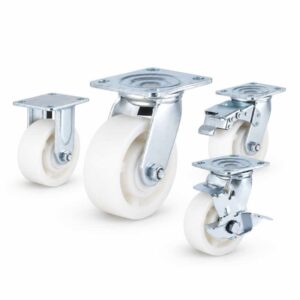

H1 series heavy-duty nylon caster wheelsOverlapping load range: 260 - 460 kgView product →SS4 series heavy-duty stainless steel casters with nylon wheelShared wheel sizes: 100, 125, 150, 200 mmView product →SS4 series heavy-duty stainless steel casters with stainless steel wheelShared wheel sizes: 100, 125, 150, 200 mmView product →H1 series heavy-duty plastic caster wheelsShared wheel sizes: 100, 125, 150, 200 mmView product →H1 series heavy-duty nylon caster wheelsShared wheel sizes: 100, 125, 150, 200 mmView product →Need help selecting the right model?
