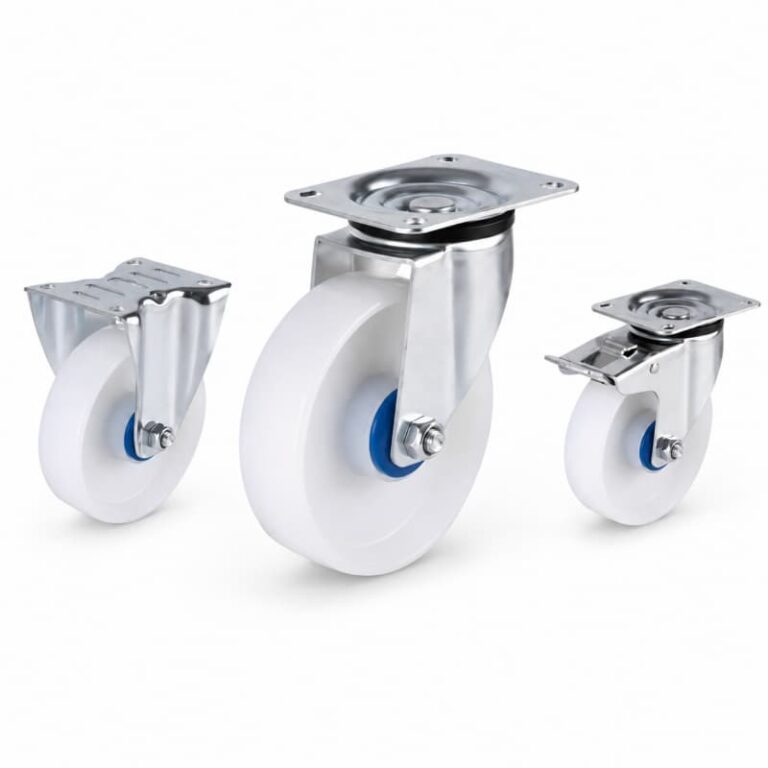

View all SS2 series | 80-160 kg capacity casters
| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Threaded Stem (mm) | Bolt Hole Fitting ⌀ (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS2075PASwivel | Top Plate | 75 | 32 | 105 | 34.5 | 95x64 | 74x45 | 8.5 | 140 | ||
| SS2100PASwivel | Top Plate | 100 | 32 | 130 | 35 | 95x64 | 74x45 | 8.5 | 120 | ||
| SS2125PASwivel | Top Plate | 125 | 32 | 155 | 30.5 | 95x64 | 74x45 | 8.5 | 140 | ||
| SS2075PAFRigid | Top Plate | 75 | 32 | 105 | 34.5 | 95x64 | 74x45 | 8.5 | 140 | ||
| SS2100PAFRigid | Top Plate | 100 | 32 | 130 | 35 | 95x64 | 74x45 | 8.5 | 120 | ||
| SS2125PAFRigid | Top Plate | 125 | 32 | 155 | 30.5 | 95x64 | 74x45 | 8.5 | 140 | ||
| SS2075PABSwivel with Total Brake | Top Plate | 75 | 32 | 105 | 34.5 | 95x64 | 74x45 | 8.5 | 140 | ||
| SS2100PABSwivel with Total Brake | Top Plate | 100 | 32 | 130 | 35 | 95x64 | 74x45 | 8.5 | 120 | ||
| SS2125PABSwivel with Total Brake | Top Plate | 125 | 32 | 155 | 30.5 | 95x64 | 74x45 | 8.5 | 140 | ||
| SS2075PATSwivel | Threaded Stem | 75 | 32 | 105 | 34.5 | M12x30 | 140 | ||||
| SS2100PATSwivel | Threaded Stem | 100 | 32 | 130 | 35 | M12x30 | 120 | ||||
| SS2125PATSwivel | Threaded Stem | 125 | 32 | 155 | 30.5 | M12x30 | 140 | ||||
| SS2075PATBSwivel with Total Brake | Threaded Stem | 75 | 32 | 105 | 34.5 | M12x30 | 140 | ||||
| SS2100PATBSwivel with Total Brake | Threaded Stem | 100 | 32 | 130 | 35 | M12x30 | 120 | ||||
| SS2125PATBSwivel with Total Brake | Threaded Stem | 125 | 32 | 155 | 30.5 | M12x30 | 140 | ||||
| SS2075PAOSwivel | Bolt Hole | 75 | 32 | 105 | 34.5 | 13 | 140 | ||||
| SS2100PAOSwivel | Bolt Hole | 100 | 32 | 130 | 35 | 13 | 120 | ||||
| SS2125PAOSwivel | Bolt Hole | 125 | 32 | 155 | 30.5 | 13 | 140 | ||||
| SS2075PAOBSwivel with Total Brake | Bolt Hole | 75 | 32 | 105 | 34.5 | 13 | 140 | ||||
| SS2100PAOBSwivel with Total Brake | Bolt Hole | 100 | 32 | 130 | 35 | 13 | 120 | ||||
| SS2125PAOBSwivel with Total Brake | Bolt Hole | 125 | 32 | 155 | 30.5 | 13 | 140 |
| Wheel Construction | One-Piece |
|---|---|
| Wheel Material | Polyamide 6 |
| Bearing Type | Plain Bore |
| Bracket Material | Stainless Steel |
| Bracket Construction | Pressed |
| Salt Spray Test Duration | 100 h |
| Wheel Tread Hardness | 65 ± 3 Shore D |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |

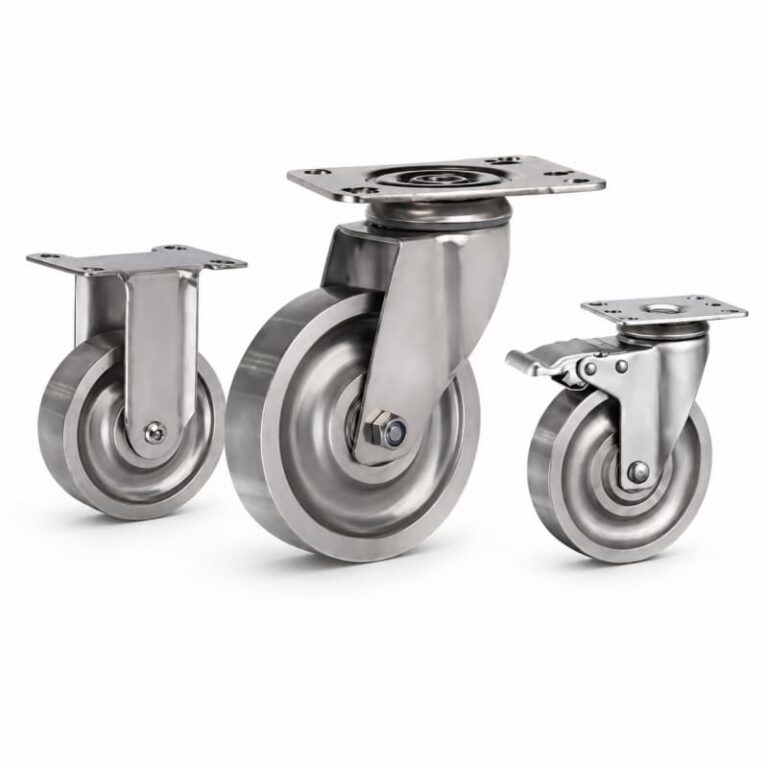

SS2 series medium-duty all-stainless steel castersOverlapping load range: 120 - 140 kgView product →

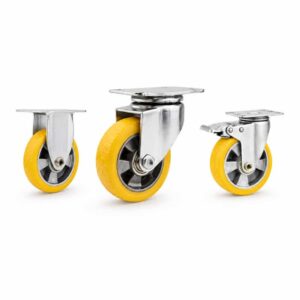

HT1 series medium-duty 200℃ high-temp resistant casters with silicone on aluminum core wheelOverlapping load range: 120 - 140 kgView product →

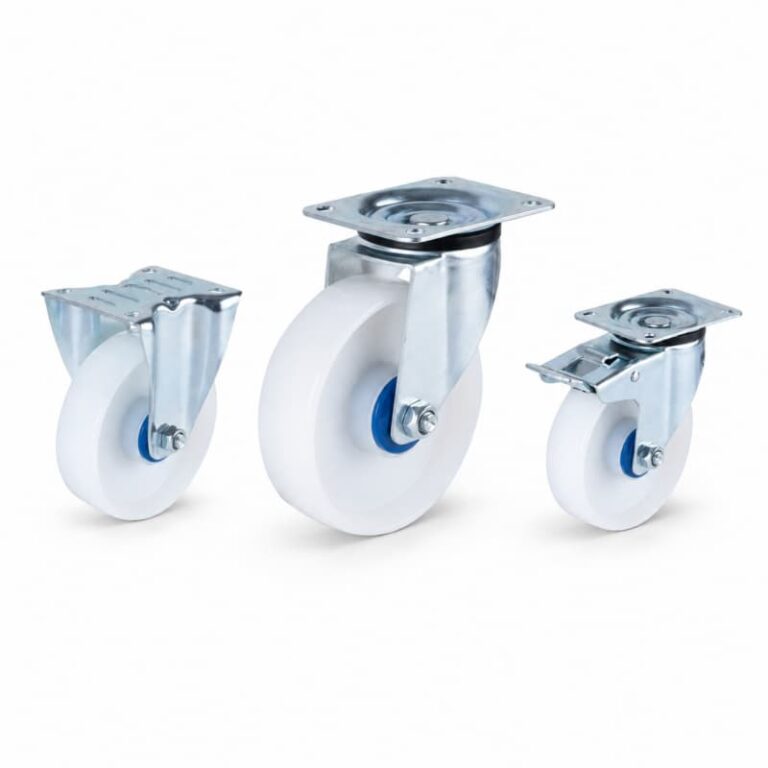

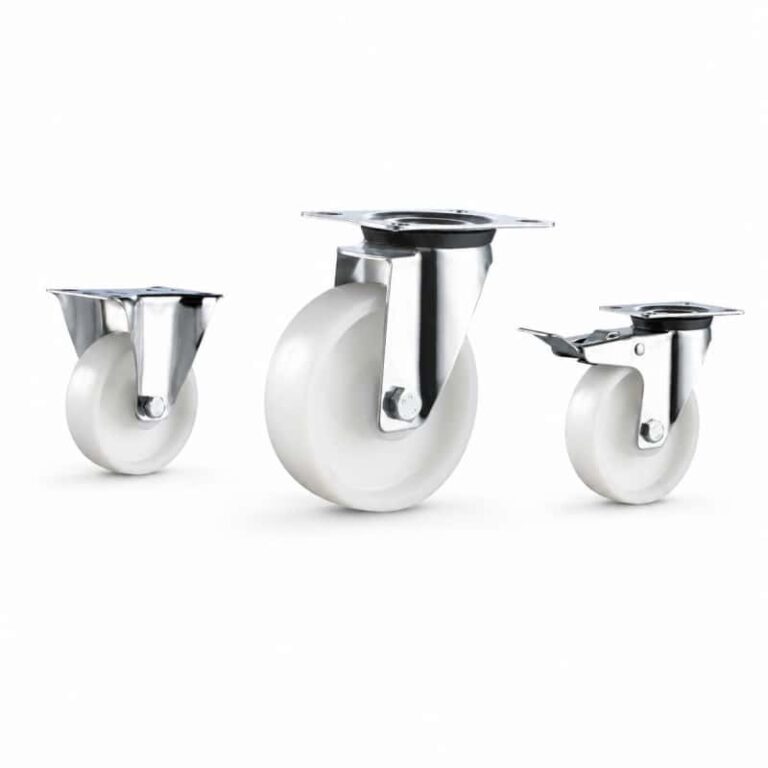

M2 series standard medium-duty plastic caster wheelsOverlapping load range: 120 - 140 kgView product →M2 series standard medium-duty nylon caster wheelsOverlapping load range: 120 - 140 kgView product →SS2 series medium-duty all-stainless steel castersShared wheel sizes: 75, 100, 125 mmView product →HT1 series medium-duty 200℃ high-temp resistant casters with silicone on aluminum core wheelShared wheel sizes: 75, 100, 125 mmView product →

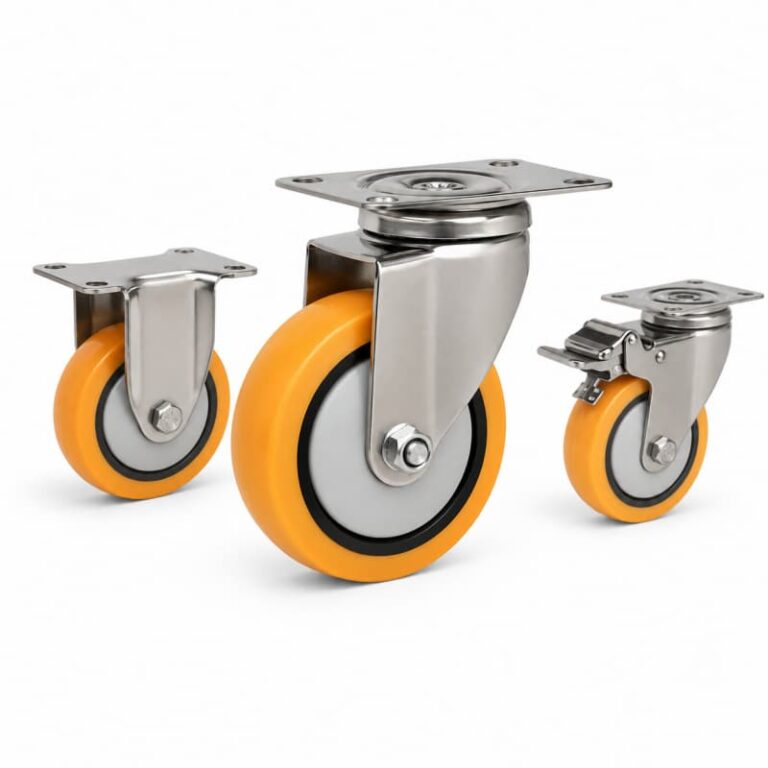

SS2 series medium-duty stainless steel casters with PU wheelShared wheel sizes: 75, 100, 125 mmView product →
