three casters with yellow tread silver core wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.

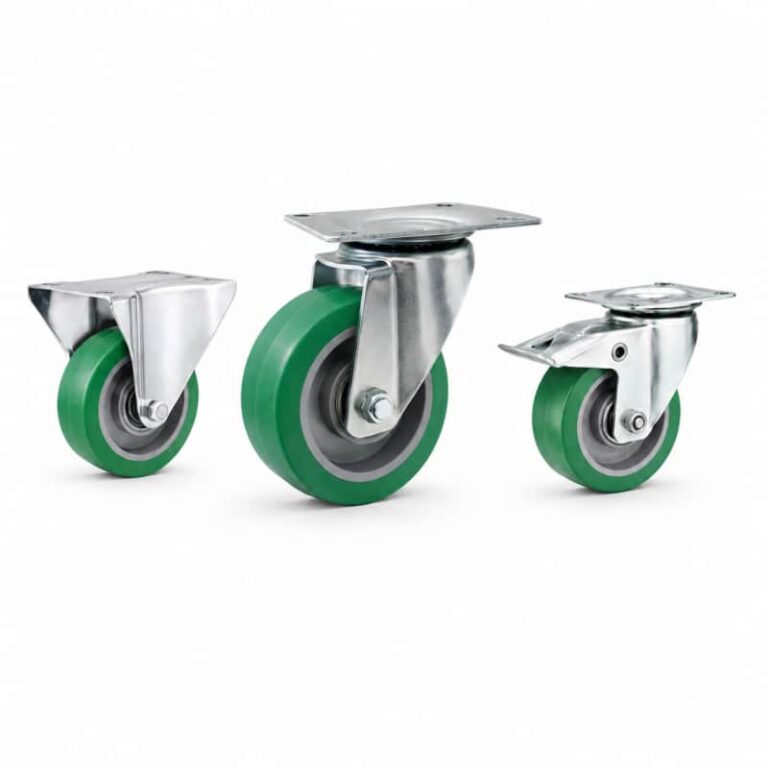

HT1 series medium-duty 200℃ high-temp resistant casters with silicone on aluminum core wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Threaded Stem (mm)Load Capacity (kg)
4 km/h
HT1075SISwivelTop Plate75321053592x6272x4512x9100
HT1100SISwivelTop Plate100321303592x6272x4512x9130
HT1125SISwivelTop Plate125321553592x6272x4512x9150
HT1075SIFRigidTop Plate7532105092x6272x4512x9100
HT1100SIFRigidTop Plate10032130092x6272x4512x9130
HT1125SIFRigidTop Plate12532155092x6272x4512x9150
HT1075SIBSwivel with Total BrakeTop Plate75321053592x6272x4512x9100
HT1100SIBSwivel with Total BrakeTop Plate100321303592x6272x4512x9130
HT1125SIBSwivel with Total BrakeTop Plate125321553592x6272x4512x9150
HT1075SITSwivelThreaded Stem75321053592x6272x4512x9M10/M12 x25mm100
HT1100SITSwivelThreaded Stem100321303592x6272x4512x9M10/M12 x25mm130
HT1125SITSwivelThreaded Stem125321553592x6272x4512x9M10/M12 x25mm150
HT1075SITBSwivel with Total BrakeThreaded Stem75321053592x6272x4512x9M10/M12 x25mm100
HT1100SITBSwivel with Total BrakeThreaded Stem100321303592x6272x4512x9M10/M12 x25mm130
HT1125SITBSwivel with Total BrakeThreaded Stem125321553592x6272x4512x9M10/M12 x25mm150

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialSilicone
Wheel Core MaterialAluminum
Bearing TypeBall Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness80 ± 5 Shore A

Performance & Environment

Temperature Resistance-30°C to +200°C
Rolling ResistanceMedium
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC, Natural Stone, Metal Grating
Suitable Floor ConditionsSmooth, Slightly Uneven, Uneven

Special Properties

Non-Marking✓
Non-Staining✓
