View all HT3 series | 180-280℃ high-temp resistant casters
| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|
| HT3100SISwivel | Top Plate | 100 | 38 | 128 | 38 | 105x80 | 80x60 | 11x9 | 100 |
| HT3100SIFRigid | Top Plate | 100 | 38 | 128 | 0 | 105x80 | 80x60 | 11x9 | 100 |
| HT3100SIBSwivel with Total Brake | Top Plate | 100 | 38 | 128 | 38 | 105x80 | 80x60 | 11x9 | 100 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | Silicone |
| Wheel Core Material | Aluminum |
| Bearing Type | Double Ball Bearing |
| Bracket Material | Steel |
| Bracket Construction | Pressed |
| Surface Treatment | White Zinc Plated |
| Salt Spray Test Duration | 48 h |
| Wheel Tread Hardness | 80 ± 5 Shore A |
| Temperature Resistance | -20°C to +280°C |
|---|---|
| Rolling Resistance | Medium |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Natural Stone, Asphalt, Metal Grating |
| Suitable Floor Conditions | Smooth, Slightly Uneven, Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
CD3EU euro-style medium-duty casters with conductive TPR wheelShared load rating: 100 kgView product →

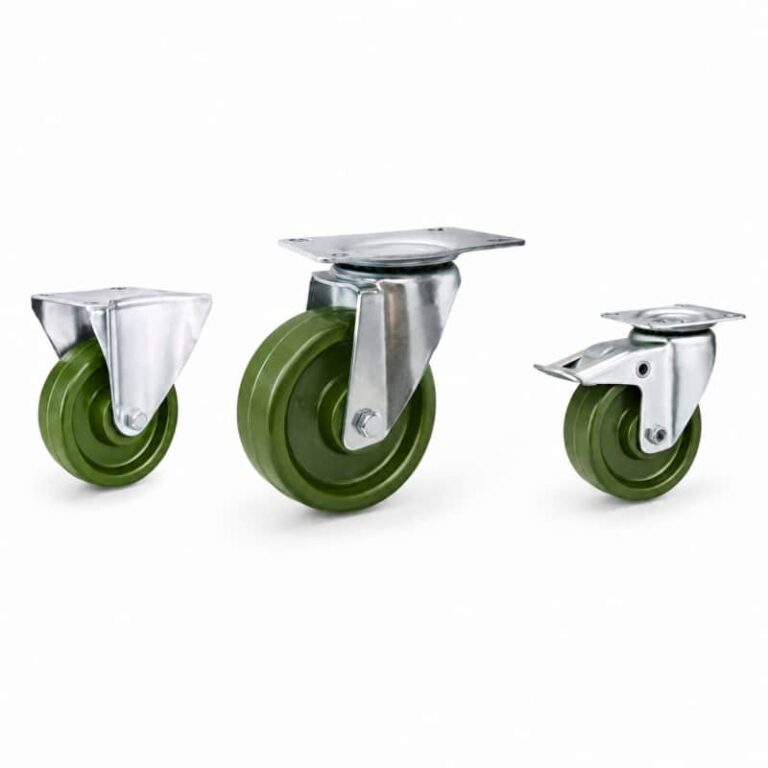

HT3 Euro-style medium-duty 280℃ high-temp resistant casters with epoxy resin wheelSimilar load range: 140 - 140 kgView product →
SS3 series euro-style stainless steel casters with elastic rubber wheelShared load rating: 100 kgView product →

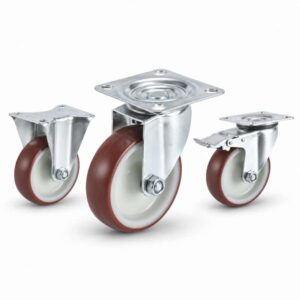

M2 series standard medium-duty nylon core PU caster wheelsShared load rating: 100 kgView product →HT3 Euro-style medium-duty 280℃ high-temp resistant casters with epoxy resin wheelShared wheel sizes: 100 mmView product →CD3EU euro-style medium-duty casters with conductive TPR wheelShared wheel sizes: 100 mmView product →
