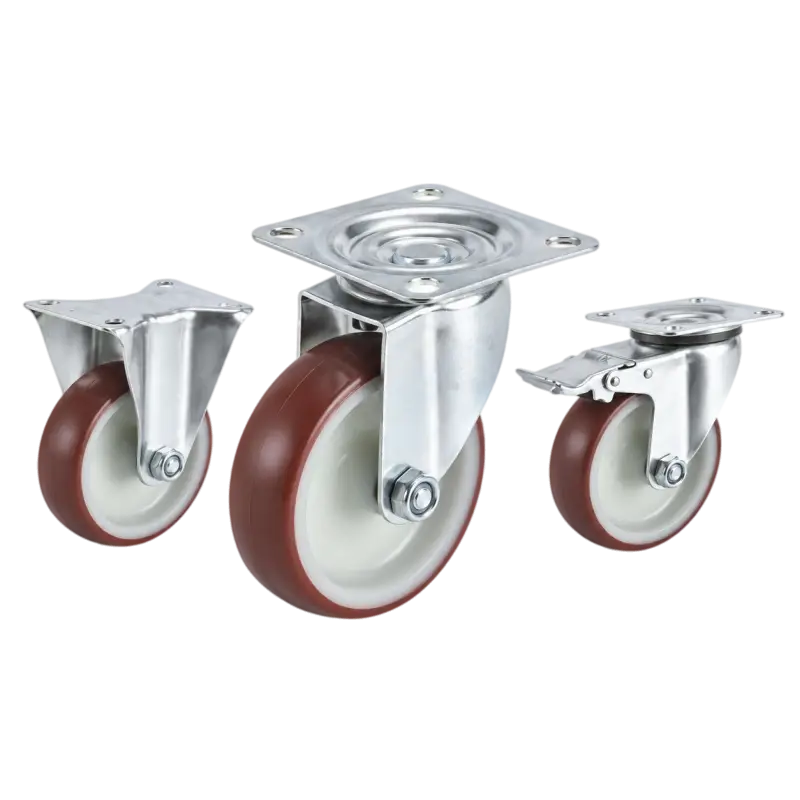

medium duty european-style casters with red and blue tread wheels in top-plate rigid, swivel and swivel with brake configurations

M2 series standard medium-duty nylon core PU caster wheels

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
M2075UYSwivelTop Plate753210633100x8080x6010.560
M2100UYSwivelTop Plate1003212837100x8080x6010.580
M2125UYSwivelTop Plate1253215535100x8080x6010.5100
M2075UYFRigidTop Plate75321060100x8080x6010.560
M2100UYFRigidTop Plate100321280100x8080x6010.580
M2125UYFRigidTop Plate125321550100x8080x6010.5100
M2075UYBSwivel with Total BrakeTop Plate753210633100x8080x6010.560
M2100UYBSwivel with Total BrakeTop Plate1003212837100x8080x6010.580
M2125UYBSwivel with Total BrakeTop Plate1253215535100x8080x6010.5100

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialPU
Wheel Core MaterialPolyamide 6
Bearing TypePlain Bore
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness90 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Non-Marking✓
Non-Staining✓
Tread Hydrolysis-Resistant×
