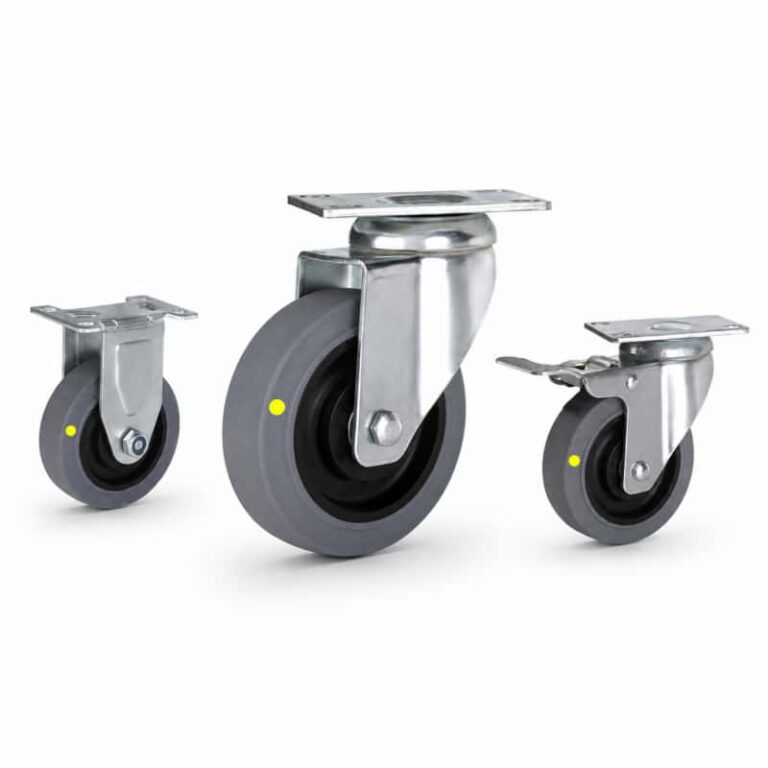

three casters with grey tread black core wheel in rigid, swivel and swivel with brake configurations.

CD1 series medium-duty casters with conductive / anti-static TPR wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Threaded Stem (mm)Load Capacity (kg)
4 km/h
CD1075TPRSwivelTop Plate75321053592x6272x4512x980
CD1100TPRSwivelTop Plate100321303592x6272x4512x990
CD1125TPRSwivelTop Plate125321553592x6272x4512x9100
CD1075TPRFRigidTop Plate7532105092x6272x4512x980
CD1100TPRFRigidTop Plate10032130092x6272x4512x990
CD1125TPRFRigidTop Plate12532155092x6272x4512x9100
CD1075TPRBSwivel with Total BrakeTop Plate75321053592x6272x4512x980
CD1100TPRBSwivel with Total BrakeTop Plate100321303592x6272x4512x990
CD1125TPRBSwivel with Total BrakeTop Plate125321553592x6272x4512x9100
CD1075TPRTSwivelThreaded Stem753210535M10/M12 x25mm80
CD1100TPRTSwivelThreaded Stem1003213035M10/M12 x25mm90
CD1125TPRTSwivelThreaded Stem1253215535M10/M12 x25mm100
CD1075TPRTBSwivel with Total BrakeThreaded Stem753210535M10/M12 x25mm80
CD1100TPRTBSwivel with Total BrakeThreaded Stem1003213035M10/M12 x25mm90
CD1125TPRTBSwivel with Total BrakeThreaded Stem1253215535M10/M12 x25mm100

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialTPR
Wheel Core MaterialPlastic
Bearing TypeBall Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness80 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceResin / Epoxy, Tile, Vinyl / PVC
Suitable Floor ConditionsSmooth, Slightly Uneven, Uneven

Special Properties

Antistatic✓
Conductive✓
Non-Marking✓
Non-Staining×
