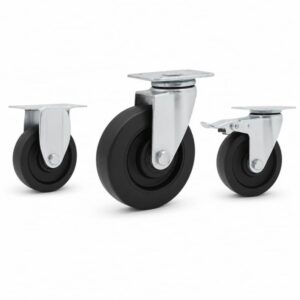

three casters with black wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.

HT1 series medium-duty 180℃ high-temp resistant casters with phenolic resin wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Threaded Stem (mm)Load Capacity (kg)
4 km/h
HT1075PR-180SwivelTop Plate75321053592x6272x4512x980
HT1100PR-180SwivelTop Plate100321303592x6272x4512x990
HT1125PR-180SwivelTop Plate125321553592x6272x4512x9100
HT1075PR-180FRigidTop Plate7532105092x6272x4512x980
HT1100PR-180FRigidTop Plate10032130092x6272x4512x990
HT1125PR-180FRigidTop Plate12532155092x6272x4512x9100
HT1075PR-180BSwivel with Total BrakeTop Plate75321053592x6272x4512x980
HT1100PR-180BSwivel with Total BrakeTop Plate100321303592x6272x4512x990
HT1125PR-180BSwivel with Total BrakeTop Plate125321553592x6272x4512x9100
HT1075PR-180TSwivelThreaded Stem75321053592x6272x4512x9M10/M12 x25mm80
HT1100PR-180TSwivelThreaded Stem100321303592x6272x4512x9M10/M12 x25mm90
HT1125PR-180TSwivelThreaded Stem125321553592x6272x4512x9M10/M12 x25mm100
HT1075PR-180TBSwivel with Total BrakeThreaded Stem75321053592x6272x4512x9M10/M12 x25mm80
HT1100PR-180TBSwivel with Total BrakeThreaded Stem100321303592x6272x4512x9M10/M12 x25mm90
HT1125PR-180TBSwivel with Total BrakeThreaded Stem125321553592x6272x4512x9M10/M12 x25mm100

Wheel & Bracket

Wheel ConstructionOne-Piece
Wheel MaterialPhenolic resin
Bearing TypePlain Bore
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness90 ± 3 Shore D

Performance & Environment

Temperature Resistance-20°C to +280°C
Rolling ResistanceLow
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Non-Marking✓
Non-Staining✓

Related Products

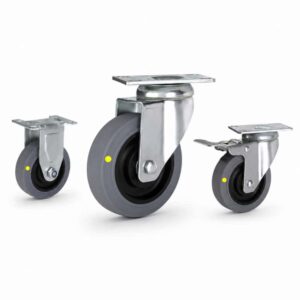

three casters with grey tread black core wheel in rigid, swivel and swivel with brake configurations.CD1 series medium-duty casters with conductive / anti-static TPR wheelOverlapping load range: 80 - 100 kgView product →three casters with black wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.HT1 series medium-duty 220℃ high-temp resistant casters with glass fiber filled nylon wheelOverlapping load range: 80 - 100 kgView product →three casters with brown wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.HT1 series medium-duty 280℃ high-temp resistant casters with glass fiber filled nylon wheelOverlapping load range: 80 - 100 kgView product →three casters with black wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.HT1 series medium-duty 280℃ high-temp resistant casters with phenolic resin wheelOverlapping load range: 80 - 100 kgView product →
