View all SS1 series | 30-50 kg capacity casters
| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Threaded Stem (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|---|
| SS1040PUSwivel | Top Plate | 40 | 20 | 60 | 26 | 54x44 | 40x30 | 6.3 | 30 | |
| SS1050PUSwivel | Top Plate | 50 | 20 | 70 | 23 | 54x44 | 40x30 | 6.3 | 50 | |
| SS1040PUFRigid | Top Plate | 40 | 20 | 60 | 0 | 54x44 | 40x30 | 6.3 | 30 | |
| SS1050PUFRigid | Top Plate | 50 | 20 | 70 | 0 | 54x44 | 40x30 | 6.3 | 50 | |
| SS1040PUBSwivel | Top Plate | 40 | 20 | 60 | 26 | 54x44 | 40x30 | 6.3 | 30 | |
| SS1050PUBSwivel | Top Plate | 50 | 20 | 70 | 23 | 54x44 | 40x30 | 6.3 | 50 | |
| SS1040PUtSwivel | Threaded Stem | 40 | 20 | 60 | 26 | M10x25 | 30 | |||
| SS1050PUtSwivel | Threaded Stem | 50 | 20 | 70 | 23 | M10x25 | 50 | |||
| SS1040PUtbSwivel with Total Brake | Threaded Stem | 40 | 20 | 60 | 26 | M10x25 | 30 | |||
| SS1050PUtbSwivel with Total Brake | Threaded Stem | 50 | 20 | 70 | 23 | M10x25 | 50 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | PU |
| Wheel Core Material | Polyamide 6 |
| Bearing Type | Ball Bearing |
| Bracket Material | Stainless Steel |
| Bracket Construction | Pressed |
| Salt Spray Test Duration | 100 h |
| Wheel Tread Hardness | 90 ± 5 Shore A |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Medium |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
| Tread Hydrolysis-Resistant | × |
| Suitable for Autoclaves | × |
| Suitable for Machine Washing | ✓ |

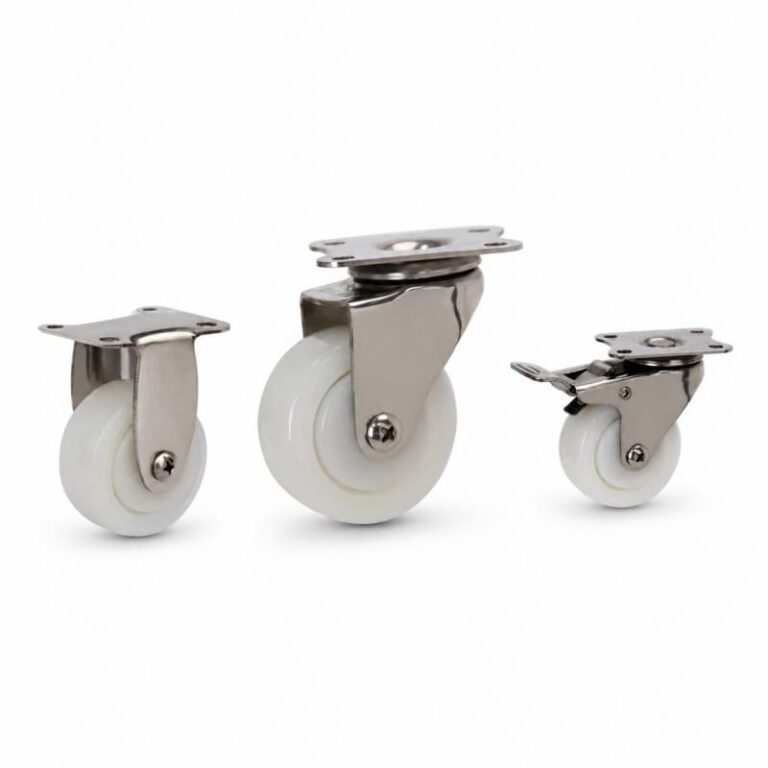

SS1 series stainless steel casters with nylon wheelsOverlapping load range: 30 - 50 kgView product →

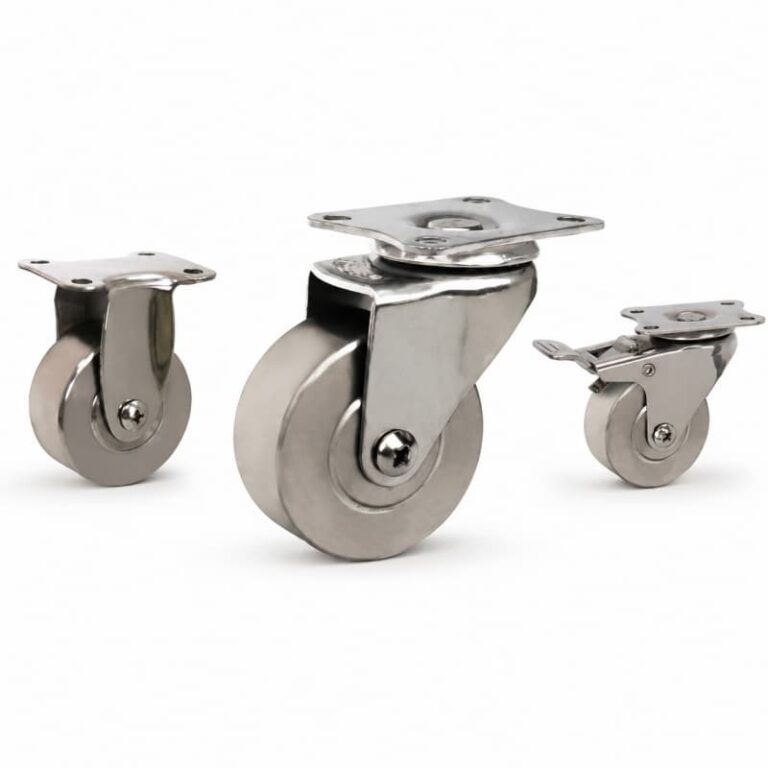

SS1 series all-stainless steel castersOverlapping load range: 30 - 50 kgView product →

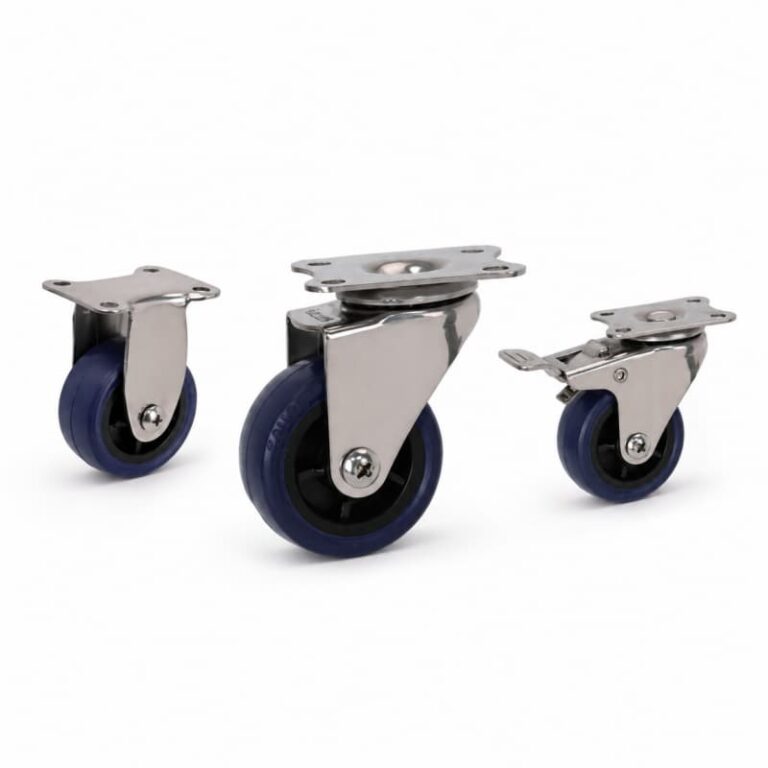

SS1 series stainless steel casters with elastic rubber wheelsOverlapping load range: 30 - 50 kgView product →

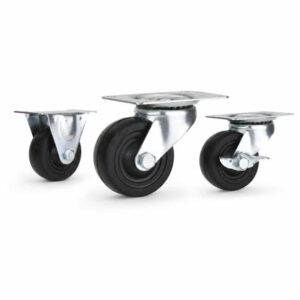

L3 series light-duty low profile hard rubber caster wheelsOverlapping load range: 30 - 50 kgView product →SS1 series stainless steel casters with nylon wheelsShared wheel sizes: 40, 50 mmView product →SS1 series all-stainless steel castersShared wheel sizes: 40, 50 mmView product →SS1 series stainless steel casters with elastic rubber wheelsShared wheel sizes: 50 mmView product →

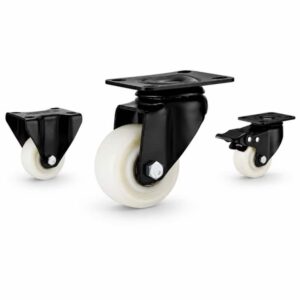

L2 series light-duty PP caster wheelsShared wheel sizes: 50 mmView product →Need help selecting the right model?
