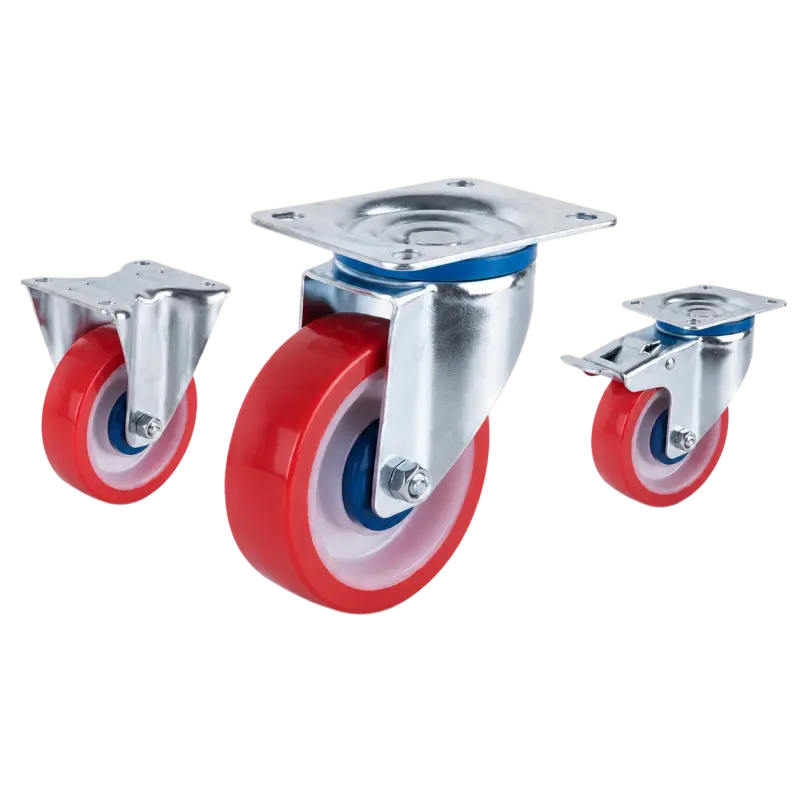

medium duty european-style casters with red PU tread wheels in top-plate rigid, swivel and swivel with brake configurations

M2EU series medium-duty casters with PU tread nylon core wheel

Send your load, wheel size, mounting type and quantity for a faster recommendation.

SERIESM2EU Euro-style series | 80-300 kg capacity SeriesView all M2EU Euro-style series | 80-300 kg capacity casters PRODUCT FAMILYVersatile medium-duty castersView all Versatile medium-duty casters WHEEL MATERIALPUView all casters with PU wheels ALL PRODUCTSCaster WheelsView all products

Model & Dimensions

Product Code / Configuration	Mounting Type	Wheel Ø (mm)	Wheel Width (mm)	Mounting Height (mm)	Offset (mm)	Top Plate Size (mm)	Bolt Hole Spacing (mm)	Threaded Stem (mm)	Bolt Holt Fitting ⌀ (mm)	Load Capacity (kg) 4 km/h
M2EU080UYSwivel	Top Plate	80	35	108	38	105x80	80x60			120
M2EU100UYSwivel	Top Plate	100	35	128	38	105x80	80x60			150
M2EU125UYSwivel	Top Plate	125	36	155	38	105x80	80x60			160
M2EU160UYSwivel	Top Plate	160	50	190	52	135x110	105x80			250
M2EU200UYSwivel	Top Plate	200	50	235	54	135x110	105x80			280
M2EU080UYFRigid	Top Plate	80	35	108	0	105x80	80x60			120
M2EU100UYFRigid	Top Plate	100	35	128	0	105x80	80x60			150
M2EU125UYFRigid	Top Plate	125	36	155	0	105x80	80x60			160
M2EU160UYFRigid	Top Plate	160	50	190	0	135x110	105x80			250
M2EU200UYFRigid	Top Plate	200	50	235	0	135x110	105x80			280
M2EU080UYBSwivel with Total Brake	Top Plate	80	35	108	38	105x80	80x60			120
M2EU100UYBSwivel with Total Brake	Top Plate	100	35	128	38	105x80	80x60			150
M2EU125UYBSwivel with Total Brake	Top Plate	125	36	155	38	105x80	80x60			160
M2EU160UYBSwivel with Total Brake	Top Plate	160	50	190	52	135x110	105x80			250
M2EU200UYBSwivel with Total Brake	Top Plate	200	50	235	54	135x110	105x80			280
M2EU080UYTSwivel	Threaded Stem	80	35	108	38	105x80		M10/M12 x30		120
M2EU100UYTSwivel	Threaded Stem	100	35	128	38	105x80		M10/M12 x30		150
M2EU125UYTSwivel	Threaded Stem	125	36	155	38	105x80		M10/M12 x30		160
M2EU160UYTSwivel	Threaded Stem	160	50	190	52	135x110		M10/M12 x30		250
M2EU200UYTSwivel	Threaded Stem	200	50	235	54	135x110		M10/M12 x30		280
M2EU080UYTBSwivel with Total Brake	Threaded Stem	80	35	108	38	105x80		M10/M12 x30		120
M2EU100UYTBSwivel with Total Brake	Threaded Stem	100	35	128	38	105x80		M10/M12 x30		150
M2EU125UYTBSwivel with Total Brake	Threaded Stem	125	36	155	38	105x80		M10/M12 x30		160
M2EU160UYTBSwivel with Total Brake	Threaded Stem	160	50	190	52	135x110		M10/M12 x30		250
M2EU200UYTBSwivel with Total Brake	Threaded Stem	200	50	235	54	135x110		M10/M12 x30		280
M2EU080UYOSwivel	Bolt Hole	80	35	108	38	105x80			10/16	120
M2EU100UYOSwivel	Bolt Hole	100	35	128	38	105x80			10/16	150
M2EU125UYOSwivel	Bolt Hole	125	36	155	38	105x80			10/16	160
M2EU160UYOSwivel	Bolt Hole	160	50	190	52	135x110			10/16	250
M2EU200UYOSwivel	Bolt Hole	200	50	235	54	135x110			10/16	280
M2EU080UYOBSwivel with Total Brake	Bolt Hole	80	35	108	38	105x80			10/16	120
M2EU100UYOBSwivel with Total Brake	Bolt Hole	100	35	128	38	105x80			10/16	150
M2EU125UYOBSwivel with Total Brake	Bolt Hole	125	36	155	38	105x80			10/16	160
M2EU160UYOBSwivel with Total Brake	Bolt Hole	160	50	190	52	135x110			10/16	250
M2EU200UYOBSwivel with Total Brake	Bolt Hole	200	50	235	54	135x110			10/16	280

Wheel & Bracket

Wheel Construction	One-Piece
Wheel Tread Material	PU
Wheel Core Material	Polyamide 6
Bearing Type	Ball Bearing, Roller Bearing
Bracket Construction	Pressed
Surface Treatment	White Zinc Plated
Salt Spray Test Duration	48 h
Wheel Tread Hardness	90 ± 5 Shore A

Performance & Environment

Temperature Resistance	-20°C to +70°C
Rolling Resistance	Medium
Suitable Floor Surface	Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Asphalt
Suitable Floor Conditions	Smooth, Slightly Uneven, Uneven
