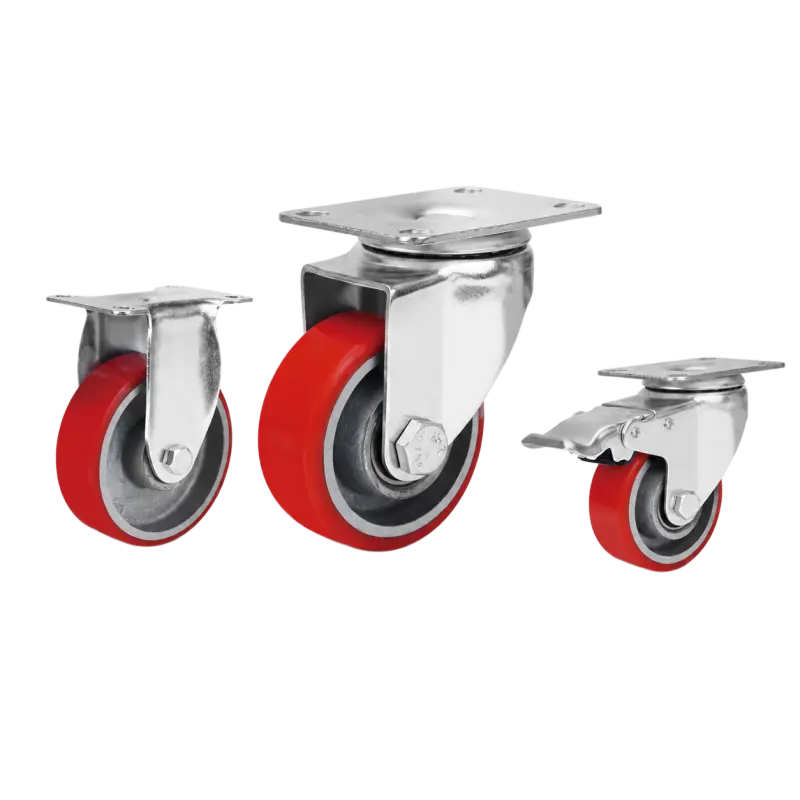

three medium-duty casters with red wheel in rigid, swivel and swivel with brake configurations.

M1 series medium-duty PU tread cast iron core caster wheels

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Threaded Stem (mm)Bolt Hole Fitting ⌀ (mm)Load Capacity (kg)
4 km/h
M1075PUISwivelTop Plate75321053395x6275x4512x9150
M1100PUISwivelTop Plate100321303395x6275x4512x9180
M1125PUISwivelTop Plate125321573395x6275x4512x9220
M1075PUIFRigidTop Plate7532105095x6275x4512x9150
M1100PUIFRigidTop Plate10032130095x6275x4512x9180
M1125PUIFRigidTop Plate12532157095x6275x4512x9220
M1075PUISBSwivel with Side-Mounted Wheel BrakeTop Plate75321053395x6275x4512x9150
M1100PUISBSwivel with Side-Mounted Wheel BrakeTop Plate100321303395x6275x4512x9180
M1125PUISBSwivel with Side-Mounted Wheel BrakeTop Plate125321573395x6275x4512x9220
M1075PUITBSwivel with Total BrakeTop Plate75321053395x6275x4512x9150
M1100PUITBSwivel with Total BrakeTop Plate100321303395x6275x4512x9180
M1125PUITBSwivel with Total BrakeTop Plate125321573395x6275x4512x9220
M1075PUITSwivelThreaded Stem753210533M10/M12 x25150
M1100PUITSwivelThreaded Stem1003213033M10/M12 x25180
M1125PUITSwivelThreaded Stem1253215733M10/M12 x25220
M1075PUITSBSwivel with Side-Mounted Wheel BrakeThreaded Stem753210533M10/M12 x25150
M1100PUITSBSwivel with Side-Mounted Wheel BrakeThreaded Stem1003213033M10/M12 x25180
M1125PUITSBSwivel with Side-Mounted Wheel BrakeThreaded Stem1253215733M10/M12 x25220
M1075PUITTBSwivel with Total BrakeThreaded Stem753210533M10/M12 x25150
M1100PUITTBSwivel with Total BrakeThreaded Stem1003213033M10/M12 x25180
M1125PUITTBSwivel with Total BrakeThreaded Stem1253215733M10/M12 x25220
M1075PUIOSwivelBolt Hole75321053312150
M1100PUIOSwivelBolt Hole100321303312180
M1125PUIOSwivelBolt Hole125321573312220
M1075PUIOSBSwivel with Side-Mounted Wheel BrakeBolt Hole75321053312150
M1100PUIOSBSwivel with Side-Mounted Wheel BrakeBolt Hole100321303312180
M1125PUIOSBSwivel with Side-Mounted Wheel BrakeBolt Hole125321573312220
M1075PUIOTBSwivel with Total BrakeBolt Hole75321053312150
M1100PUIOTBSwivel with Total BrakeBolt Hole100321303312180
M1125PUIOTBSwivel with Total BrakeBolt Hole125321573312220
M1075PUISGSwivelGrip Ring753210533150
M1100PUISGSwivelGrip Ring1003213033180
M1125PUISGSwivelGrip Ring1253215733220
M1075PUISGSBSwivel with Side-Mounted Wheel BrakeGrip Ring753210533150
M1100PUISGSBSwivel with Side-Mounted Wheel BrakeGrip Ring1003213033180
M1125PUISGSBSwivel with Side-Mounted Wheel BrakeGrip Ring1253215733220
M1075PUISGTBSwivel with Total BrakeGrip Ring753210533150
M1100PUISGTBSwivel with Total BrakeGrip Ring1003213033180
M1125PUISGTBSwivel with Total BrakeGrip Ring1253215733220
M1075PUIQSSwivelSquare Solid Stem753210533150
M1100PUIQSSwivelSquare Solid Stem1003213033180
M1125PUIQSSwivelSquare Solid Stem1253215733220
M1075PUIQSSBSwivel with Side-Mounted Wheel BrakeSquare Solid Stem753210533150
M1100PUIQSSBSwivel with Side-Mounted Wheel BrakeSquare Solid Stem1003213033180
M1125PUIQSSBSwivel with Side-Mounted Wheel BrakeSquare Solid Stem1253215733220
M1075PUIQSTBSwivel with Total BrakeSquare Solid Stem753210533150
M1100PUIQSTBSwivel with Total BrakeSquare Solid Stem1003213033180
M1125PUIQSTBSwivel with Total BrakeSquare Solid Stem1253215733220
M1075PUIRPSwivelRound Expander753210533150
M1100PUIRPSwivelRound Expander1003213033180
M1125PUIRPSwivelRound Expander1253215733220
M1075PUIRPSBSwivel with Side-Mounted Wheel BrakeRound Expander753210533150
M10100PUIRPSBSwivel with Side-Mounted Wheel BrakeRound Expander1003213033180
M10125PUIRPSBSwivel with Side-Mounted Wheel BrakeRound Expander1253215733220
M1075PUIRPTBSwivel with Total BrakeRound Expander753210533150
M1100PUIRPTBSwivel with Total BrakeRound Expander1003213033180
M1125PUIRPTBSwivel with Total BrakeRound Expander1253215733220
M1075PUIQPSwivelSquare Expander753210533150
M1100PUIQPSwivelSquare Expander1003213033180
M1125PUIQPSwivelSquare Expander1253215733220
M1075PUIQPSBSwivel with Side-Mounted Wheel BrakeSquare Expander753210533150
M1100PUIQPSBSwivel with Side-Mounted Wheel BrakeSquare Expander1003213033180
M1125PUIQPSBSwivel with Side-Mounted Wheel BrakeSquare Expander1253215733220
M1075PUIQPTBSwivel with Total BrakeSquare Expander753210533150
M1100PUIQPTBSwivel with Total BrakeSquare Expander1003213033180
M1125PUIQPTBSwivel with Total BrakeSquare Expander1253215733220

Wheel & Bracket

Wheel ConstructionTread on Core
Wheel Tread MaterialPU
Wheel Core MaterialCast iron
Bearing TypeBall Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness90 ± 5 Shore A

Performance & Environment

Temperature Resistance-20°C to +70°C
Rolling ResistanceMedium
Suitable Floor SurfaceConcrete, Resin / Epoxy, Tile, Vinyl / PVC, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Non-Marking✓
Non-Staining✓
Tread Hydrolysis-Resistant×
