| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Solid Stem (mm) | Hollow Tube (mm) | Threaded Stem + Round expander (mm) | Load Capacity (kg) Static |
|---|---|---|---|---|---|---|---|---|---|
| SC3100PAHTBSwivel with Total Brake | Hollow Tube | 100 | 34 | 134.5 | 32 | 46x125 | 150 | ||
| SC3125PAHTBSwivel with Total Brake | Hollow Tube | 125 | 38 | 161 | 37 | 46x125 | 200 | ||
| SC3150PAHTBSwivel with Total Brake | Hollow Tube | 150 | 40 | 192 | 53 | 46x125 | 250 | ||
| SC3200PAHTBSwivel with Total Brake | Hollow Tube | 200 | 42 | 241 | 54 | 46x125 | 250 | ||
| SC3100PAEPBSwivel with Total Brake | Solid Stem | 100 | 34 | 134.5 | 32 | 38X55.5 | 150 | ||
| SC3125PAEPBSwivel with Total Brake | Solid Stem | 125 | 38 | 161 | 37 | 38X55.5 | 200 | ||
| SC3150PAEPBSwivel with Total Brake | Solid Stem | 150 | 40 | 192 | 53 | 38X55.5 | 250 | ||
| SC3200PAEPBSwivel with Total Brake | Solid Stem | 200 | 42 | 241 | 54 | 38X55.5 | 250 | ||
| SC3100PASBSwivel with Total Brake | Round Expander | 100 | 34 | 134.5 | 32 | 46x61.5 | 150 | ||
| SC3125PASBSwivel with Total Brake | Round Expander | 125 | 38 | 161 | 37 | 46x61.5 | 200 | ||
| SC3150PASBSwivel with Total Brake | Round Expander | 150 | 40 | 192 | 53 | 46x61.5 | 250 | ||
| SC3200PASBSwivel with Total Brake | Round Expander | 200 | 42 | 241 | 54 | 46x61.5 | 250 |
| Wheel Construction | One-Piece |
|---|---|
| Wheel Material | Polyamide 6 |
| Bearing Type | Plain Bore |
| Bracket Material | Steel |
| Bracket Construction | Pressed |
| Surface Treatment | White Zinc Plated |
| Salt Spray Test Duration | 48 h |
| Wheel Tread Hardness | 65 ± 3 Shore D |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Carpet, Natural Stone, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
SS4 series heavy-duty stainless steel casters with nylon wheelShared wheel sizes: 100, 125, 150, 200 mmView product →
SS4 series heavy-duty stainless steel casters with TPR wheelShared wheel sizes: 100, 125, 150, 200 mmView product →
SS4 series heavy-duty stainless steel casters with stainless steel wheelShared wheel sizes: 100, 125, 150, 200 mmView product →

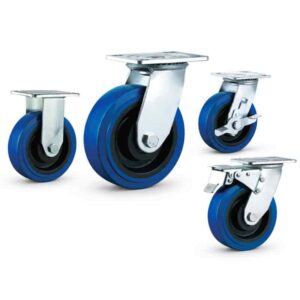

H1 series heavy-duty elastic rubber caster wheelsShared wheel sizes: 100, 125, 150, 200 mmView product →Need help selecting the right model?
