| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Threaded Stem (mm) | Load Capacity (kg) Static |
|---|---|---|---|---|---|---|---|
| SC2125PATB1Swivel with Total Brake | Threaded Stem | 125 | 40 | 158 | 30 | 38x500 | 300 |
| SC2150PATB1Swivel with Total Brake | Threaded Stem | 150 | 45 | 181 | 30 | 38x500 | 400 |
| SC2200PATB1Swivel with Total Brake | Threaded Stem | 200 | 50 | 241 | 40 | 38x500 | 500 |
| SC2125PATB1LSwivel with Total Brake | Threaded Stem | 125 | 40 | 158 | 30 | 38x500 | 600 |
| SC2150PATB1LSwivel with Total Brake | Threaded Stem | 150 | 45 | 181 | 30 | 38x500 | 700 |
| SC2200PATB1LSwivel with Total Brake | Threaded Stem | 200 | 50 | 241 | 40 | 38x500 | 700 |
| SC2200PATB1LSwivel with Total Brake | Threaded Stem | 200 | 50 | 241 | 40 | 38x500 | 1000 |
| Wheel Construction | One-Piece |
|---|---|
| Wheel Material | Polyamide 6 |
| Bearing Type | Plain Bore |
| Bracket Material | Steel |
| Bracket Construction | Pressed |
| Surface Treatment | White Zinc Plated |
| Salt Spray Test Duration | 48 h |
| Wheel Tread Hardness | 65 ± 3 Shore D |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Vinyl / PVC, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
| Tread Hydrolysis-Resistant | × |
SC2 series scaffolding casters with PU tread nylon core wheel and steel rodShared wheel sizes: 125, 150, 200 mmView product →

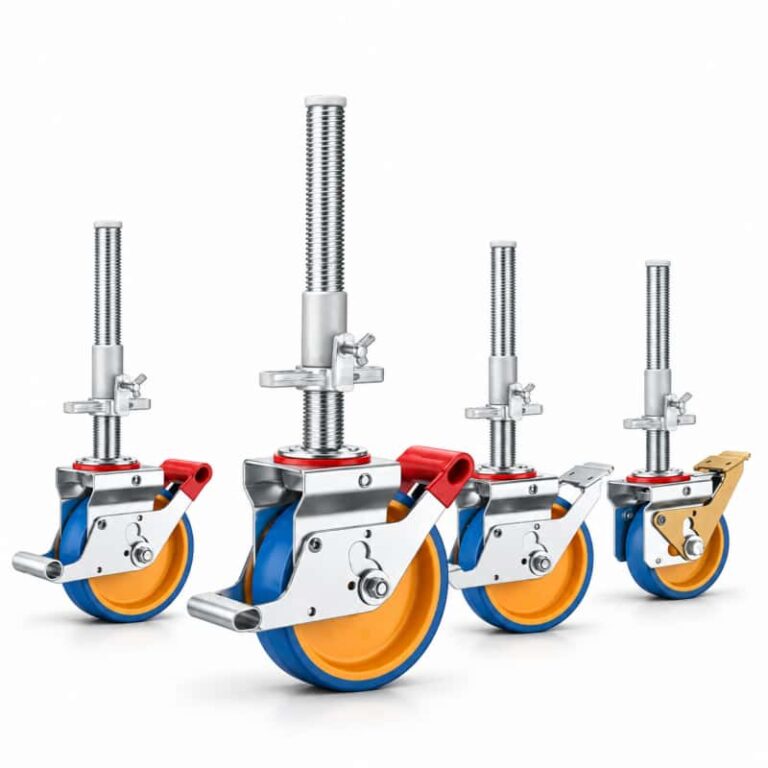

SC1 series scaffolding casters with PU tread nylon core wheel and solid stemShared wheel sizes: 125, 150, 200 mmView product →

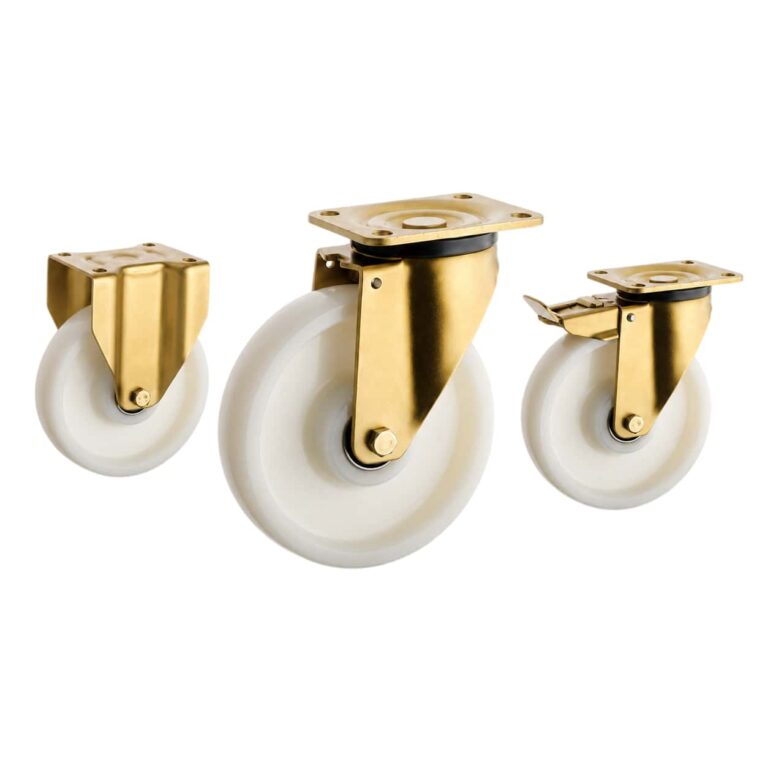

H6EU series heavy-duty casters with nylon wheelsShared wheel sizes: 125, 150, 200 mmView product →
