| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Threaded Stem (mm) | Grip Ring Stem (mm) | Load Capacity (kg) 3 km/h |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MD2063Swivel | Top Plate | 63 | 11.5 | 78.6 | 37.5 | 60x49 | 45.5x32.5 | 6.5 | 40 | ||
| MD2075Swivel | Top Plate | 75 | 12 | 90 | 42.5 | 70x58 | 54.5x40.5 | 8.2 | 50 | ||
| MD2100Swivel | Top Plate | 100 | 15 | 121 | 52 | 84x75 | 65x52.5 | 8.5 | 80 | ||
| MD2063BSwivel with Total Brake | Top Plate | 63 | 11.5 | 78.6 | 37.5 | 60x49 | 45.5x32.5 | 6.5 | 40 | ||
| MD2075BSwivel with Total Brake | Top Plate | 75 | 12 | 90 | 42.5 | 70x58 | 54.5x40.5 | 8.2 | 50 | ||
| MD2100BSwivel with Total Brake | Top Plate | 100 | 15 | 121 | 52 | 84x75 | 65x52.5 | 8.5 | 80 | ||
| MD2063TSwivel | Threaded Stem | 63 | 11.5 | 78.6 | 37.5 | M10x20 | 40 | ||||
| MD2075TSwivel | Threaded Stem | 75 | 12 | 90 | 42.5 | M12x25 | 50 | ||||
| MD2100TSwivel | Threaded Stem | 100 | 15 | 121 | 52 | M12x25 | 80 | ||||
| MD2063TBSwivel with Total Brake | Threaded Stem | 63 | 11.5 | 78.6 | 37.5 | M10x20 | 40 | ||||
| MD2075TBSwivel with Total Brake | Threaded Stem | 75 | 12 | 90 | 42.5 | M12x25 | 50 | ||||
| MD2100TBSwivel with Total Brake | Threaded Stem | 100 | 15 | 121 | 52 | M12x25 | 80 | ||||
| MD1075TBSwivel with Total Brake | Threaded Stem | 75 | 12 | 90 | 42.5 | M12x25 | 50 | ||||
| MD1100TBSwivel with Total Brake | Threaded Stem | 100 | 15 | 121 | 52 | M12x25 | 80 | ||||
| MD2063GRSwivel | Grip Ring | 63 | 11.5 | 78.6 | 37.5 | M11x21.8 | 40 | ||||
| MD2075GRSwivel | Grip Ring | 75 | 12 | 89 | 42.5 | M11x21.8 | 50 | ||||
| MD2063GRBSwivel with Total Brake | Grip Ring | 63 | 11.5 | 78.6 | 37.5 | M11x21.8 | 40 | ||||
| MD2075GRBSwivel with Total Brake | Grip Ring | 75 | 12 | 89 | 42.5 | M11x21.8 | 50 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | TPR |
| Wheel Core Material | Plastic |
| Bearing Type | Delrin Bearing |
| Bracket Material | Polyamide |
| Bracket Construction | Injected |
| Wheel Tread Hardness | 80 ± 5 Shore A |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Medium |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Wood, Natural Stone |
| Suitable Floor Conditions | Smooth, Slightly Uneven, Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | × |

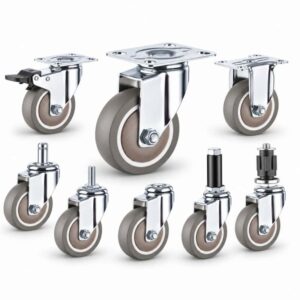

L5V series light-duty TPE caster wheelsOverlapping load range: 45 - 65 kgView product →
L3 series light-duty low profile hard rubber caster wheelsOverlapping load range: 40 - 80 kgView product →
L8D series light-duty dual wheel plastic castersOverlapping load range: 50 - 60 kgView product →
L8D series light-duty dual wheel TPR caster wheelsOverlapping load range: 50 - 60 kgView product →L5V series light-duty TPE caster wheelsShared wheel sizes: 63, 75, 100 mmView product →
MD1 series recyclable medical caster with TPR wheelShared wheel sizes: 75, 100 mmView product →L3 series light-duty low profile hard rubber caster wheelsShared wheel sizes: 63, 75, 100 mmView product →

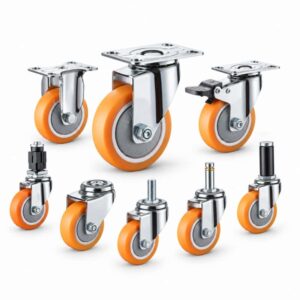

L5V series light-duty nylon caster wheelsShared wheel sizes: 63, 75 mmView product →Need help selecting the right model?
