| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Threaded Stem (mm) | Grip Ring Stem (mm) | Load Capacity (kg) 3 km/h |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MD2075BSwivel with Total Brake | Top Plate | 75 | 12 | 103.5 | 34 | 70x58 | 54x41.8 | 9.5x8.5 | 60 | ||
| MD3075TBSwivel with Total Brake | Threaded Stem | 75 | 12 | 94.5 | 34 | M12x25 | 60 | ||||
| MD3075GRBSwivel with Total Brake | Grip Ring | 75 | 12 | 91.5 | 34 | M11x21.8 | 60 |
| Wheel Construction | Tread on Core |
|---|---|
| Wheel Tread Material | TPR |
| Wheel Core Material | Plastic |
| Bearing Type | Double Ball Bearing |
| Bracket Material | Polyamide |
| Bracket Construction | Injected |
| Wheel Tread Hardness | 80 ± 5 Shore A |
| Temperature Resistance | -20°C to +70°C |
|---|---|
| Rolling Resistance | Medium |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Wood, Natural Stone |
| Suitable Floor Conditions | Smooth, Slightly Uneven, Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | × |

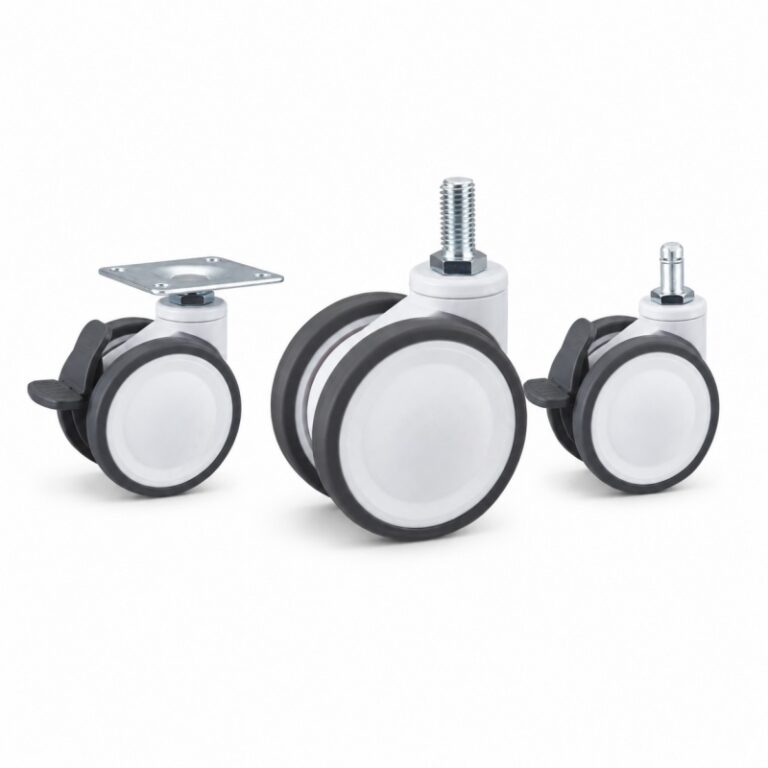

MD2 series recyclable medical caster with TPR wheelShared load rating: 60 kgView product →

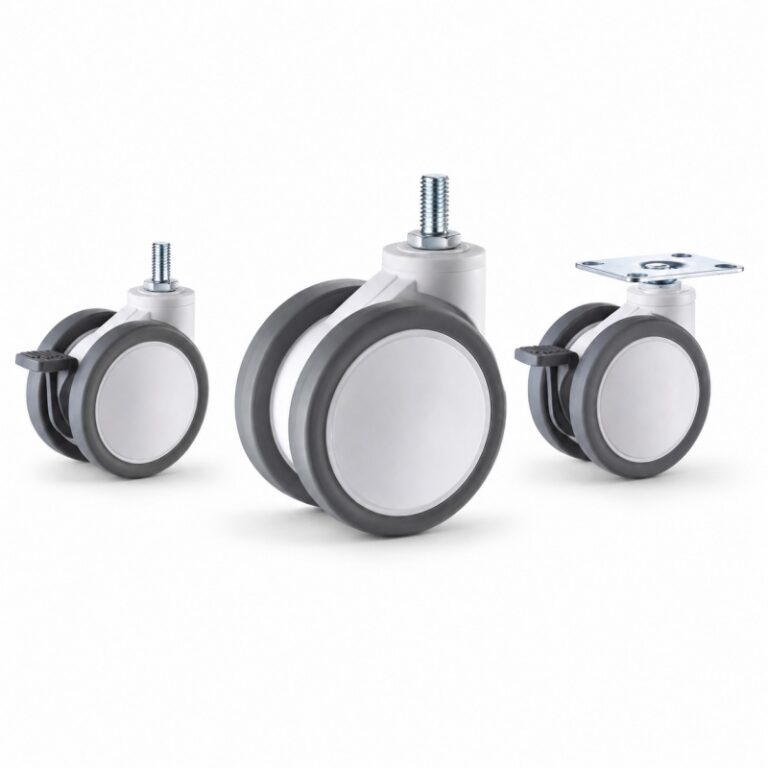

MD1 series recyclable medical caster with TPR wheelSimilar load range: 70 - 90 kgView product →

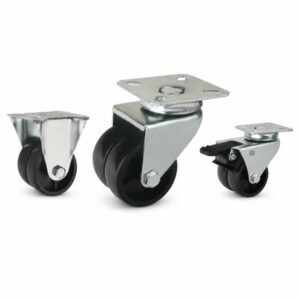

L8D series light-duty dual wheel plastic castersShared load rating: 60 kgView product →

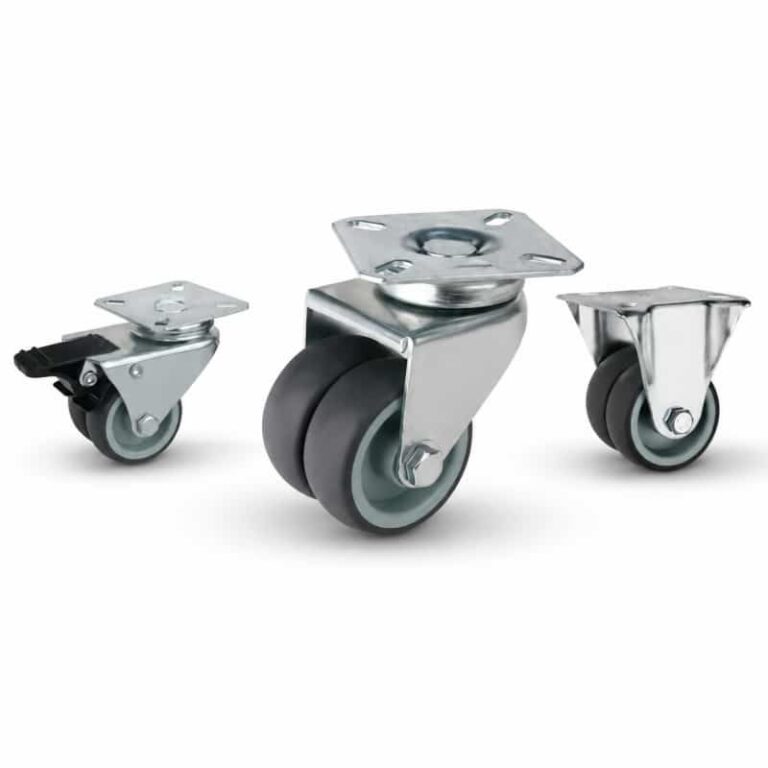

L8D series light-duty dual wheel TPR caster wheelsShared load rating: 60 kgView product →MD1 series recyclable medical caster with TPR wheelShared wheel sizes: 75 mmView product →L8D series light-duty dual wheel plastic castersShared wheel sizes: 75 mmView product →L8D series light-duty dual wheel TPR caster wheelsShared wheel sizes: 75 mmView product →MD2 series recyclable medical caster with TPR wheelShared wheel sizes: 75 mmView product →Need help selecting the right model?
