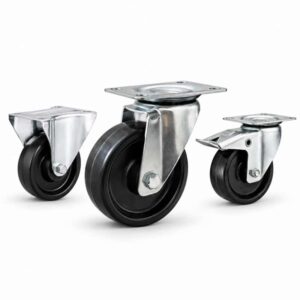

View all HT3 series | 180-280℃ high-temp resistant casters
| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|
| HT3100GN-280Swivel | Top Plate | 100 | 32 | 128 | 38 | 105x80 | 80x60 | 11x9 | 120 |
| HT3125GN-280Swivel | Top Plate | 125 | 32 | 155 | 38 | 105x80 | 80x60 | 11x9 | 150 |
| HT3100GN-280FRigid | Top Plate | 100 | 32 | 128 | 38 | 105x80 | 80x60 | 11x9 | 120 |
| HT3125GN-280FRigid | Top Plate | 125 | 32 | 155 | 38 | 105x80 | 80x60 | 11x9 | 150 |
| HT3100GN-280BSwivel with Total Brake | Top Plate | 100 | 32 | 128 | 38 | 105x80 | 80x60 | 11x9 | 120 |
| HT3125GN-280BSwivel with Total Brake | Top Plate | 125 | 32 | 155 | 38 | 105x80 | 80x60 | 11x9 | 150 |
| Wheel Construction | One-Piece |
|---|---|
| Wheel Material | Glass fiber filled Nylon |
| Bearing Type | Double Ball Bearing |
| Bracket Material | Steel |
| Bracket Construction | Pressed |
| Surface Treatment | White Zinc Plated |
| Salt Spray Test Duration | 48 h |
| Wheel Tread Hardness | 85 ± 5 Shore D |
| Temperature Resistance | -20°C to +220°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Vinyl / PVC, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |
