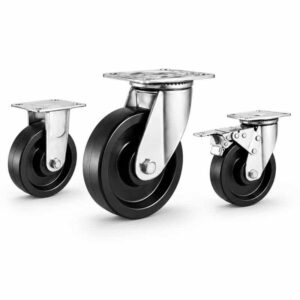

three casters with black wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.

HT2 series heavy-duty 220℃ high-temp resistant casters with glass fiber filled nylon wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
HT2100GN-220SwivelTop Plate1005014236.5115x10085x7313x20250
HT2125GN-220SwivelTop Plate1255016542115x10085x7313x20300
HT2150GN-220SwivelTop Plate1505019151115x10085x7313x20350
HT2200GN-220SwivelTop Plate2005024063115x10085x7313x20400
HT2100GN-220FRigidTop Plate100501420115x10085x7313x20250
HT2125GN-220FRigidTop Plate125501650115x10085x7313x20300
HT2150GN-220FRigidTop Plate150501910115x10085x7313x20350
HT2200GN-220FRigidTop Plate200502400115x10085x7313x20400
HT2100GN-220BSwivel with Total BrakeTop Plate1005014236.5115x10085x7313x20250
HT2125GN-220BSwivel with Total BrakeTop Plate1255016542115x10085x7313x20300
HT2150GN-220BSwivel with Total BrakeTop Plate1505019151115x10085x7313x20350
HT2200GN-220BSwivel with Total BrakeTop Plate2005024063115x10085x7313x20400

Wheel & Bracket

Wheel ConstructionOne-Piece
Wheel MaterialGlass fiber filled Nylon
Bearing TypeDouble Ball Bearing
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness85 ± 5 Shore D

Performance & Environment

Temperature Resistance-20°C to +220°C
Rolling ResistanceLow
Suitable Floor SurfaceConcrete, Resin / Epoxy, Vinyl / PVC, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Non-Marking✓
Non-Staining✓
