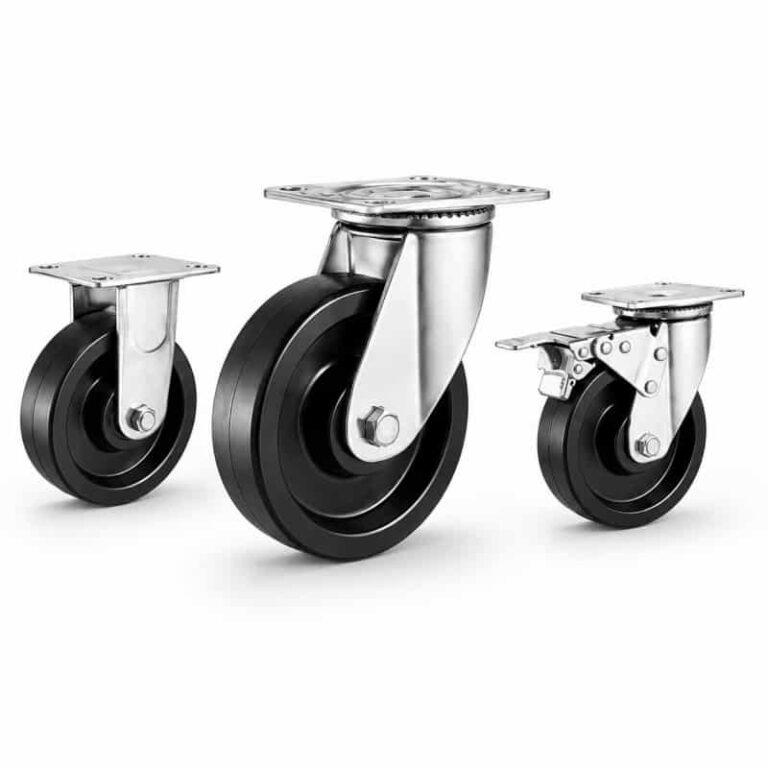

three casters with black wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.

HT2 series heavy-duty 180℃ high-temp resistant casters with phenolic resin wheel

SAMPLE LEAD TIME
2–3 days
PRODUCTION LEAD TIME
10–30 days
CUSTOMIZATION
Yes
TECHNICAL SUPPORT
Drawings & spec sheets available
Request a quote
View available models

Browse Related Caster Options

Model & Dimensions

Product Code / ConfigurationMounting TypeWheel Ø (mm)Wheel Width (mm)Mounting Height (mm)Offset (mm)Top Plate Size (mm)Bolt Hole Spacing (mm)Bolt Hole Size (mm)Load Capacity (kg)
4 km/h
HT2100PR-180SwivelTop Plate1005014236.5115x10085x7313x20250
HT2125PR-180SwivelTop Plate1255016542115x10085x7313x20300
HT2150PR-180SwivelTop Plate1505019151115x10085x7313x20350
HT1800PR-180SwivelTop Plate2005024063115x10085x7313x20400
HT2100PR-180FRigidTop Plate100501420115x10085x7313x20250
HT2125PR-180FRigidTop Plate125501650115x10085x7313x20300
HT2150PR-180FRigidTop Plate150501910115x10085x7313x20350
HT1800PR-180FRigidTop Plate200502400115x10085x7313x20400
HT2100PR-180BSwivel with Total BrakeTop Plate1005014236.5115x10085x7313x20250
HT2125PR-180BSwivel with Total BrakeTop Plate1255016542115x10085x7313x20300
HT2150PR-180BSwivel with Total BrakeTop Plate1505019151115x10085x7313x20350
HT1800PR-180BSwivel with Total BrakeTop Plate2005024063115x10085x7313x20400

Wheel & Bracket

Wheel ConstructionOne-Piece
Wheel MaterialGlass fiber filled Nylon
Bearing TypeRoller Bearing, Plain Bore
Bracket MaterialSteel
Bracket ConstructionPressed
Surface TreatmentWhite Zinc Plated
Salt Spray Test Duration48 h
Wheel Tread Hardness90 ± 3 Shore D

Performance & Environment

Temperature Resistance-20°C to +280°C
Rolling ResistanceLow
Suitable Floor SurfaceConcrete, Resin / Epoxy, Vinyl / PVC, Asphalt
Suitable Floor ConditionsSmooth, Slightly Uneven

Special Properties

Non-Marking✓
Non-Staining✓

Related Products

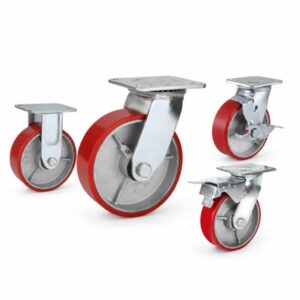

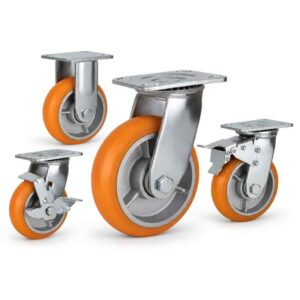

Four heavy-duty caster wheels in top plate mounting style, with red tread silver core wheel and silver color metal bracket.H1 series heavy-duty casters with PU tread cast iron core wheelsOverlapping load range: 250 - 400 kgView product →Four heavy-duty caster wheels in top plate mounting style, with orange tread silver core wheel and silver color metal bracket.H1 series heavy-duty PU tread cast iron core caster wheelsOverlapping load range: 250 - 400 kgView product →three casters with black wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.HT2 series heavy-duty 220℃ high-temp resistant casters with glass fiber filled nylon wheelOverlapping load range: 250 - 400 kgView product →three heavy-duty casters with brown wheel in top-plate rigid, swivel and swivel with brake configurations and silver color metal bracket.HT2 series heavy-duty 280℃ high-temp resistant casters with glass fiber filled nylon wheelOverlapping load range: 250 - 400 kgView product →
