| Product Code / Configuration | Mounting Type | Wheel Ø (mm) | Wheel Width (mm) | Mounting Height (mm) | Offset (mm) | Top Plate Size (mm) | Bolt Hole Spacing (mm) | Bolt Hole Size (mm) | Load Capacity (kg) 4 km/h |
|---|---|---|---|---|---|---|---|---|---|
| EX4150MCPASwivel | Top Plate | 150 | 75 | 224 | 45 | 186x136 | 144x95 | 14.2 | 2600 |
| EX4200MCPASwivel | Top Plate | 200 | 75 | 269 | 60 | 186x136 | 144x95 | 14.2 | 3000 |
| EX4250MCPASwivel | Top Plate | 250 | 75 | 314 | 75 | 186x136 | 144x95 | 14.2 | 3200 |
| EX4300MCPASwivel | Top Plate | 300 | 75 | 362 | 90 | 186x136 | 144x95 | 14.2 | 3200 |
| EX4150MCPAFRigid | Top Plate | 150 | 75 | 224 | 45 | 186x136 | 144x95 | 14.2 | 2600 |
| EX4200MCPAFRigid | Top Plate | 200 | 75 | 269 | 60 | 186x136 | 144x95 | 14.2 | 3000 |
| EX4250MCPAFRigid | Top Plate | 250 | 75 | 314 | 75 | 186x136 | 144x95 | 14.2 | 3200 |
| EX4300MCPAFRigid | Top Plate | 300 | 75 | 362 | 90 | 186x136 | 144x95 | 14.2 | 3200 |
| Wheel Construction | One-Piece |
|---|---|
| Wheel Material | MC nylon |
| Bearing Type | Double Ball Bearing |
| Bracket Material | Steel |
| Bracket Construction | Welded |
| Surface Treatment | Powder Coated |
| Salt Spray Test Duration | 72 h |
| Wheel Tread Hardness | 80 ± 3 Shore D |
| Temperature Resistance | -20°C to +80°C |
|---|---|
| Rolling Resistance | Low |
| Suitable Floor Surface | Concrete, Resin / Epoxy, Tile, Vinyl / PVC, Asphalt |
| Suitable Floor Conditions | Smooth, Slightly Uneven |
| Non-Marking | ✓ |
|---|---|
| Non-Staining | ✓ |

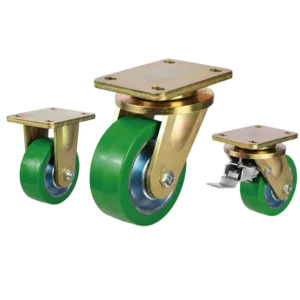

EX7D series extra heavy-duty dual wheel PU tread cast iron core castersOverlapping load range: 2,600 - 3,200 kgView product →
